Now that we have a Prometheus instance monitoring all our Prometheus exporter nodes, we can look at a way to display the data in a more easy-to-understand way. Enter Grafana, one of the best data visualisation dashboards around. We are going to install it as a separate LXC container as well, just like we did with the Prometheus Monitor node. Remember, Prometheus is the node monitoring all our exporter nodes and all the data is stored on it as well. Grafana is just a way to visualise that data in an easier way, so we don’t need a very beefy node for Grafana.
Step 1: Install a new Grafana LXC

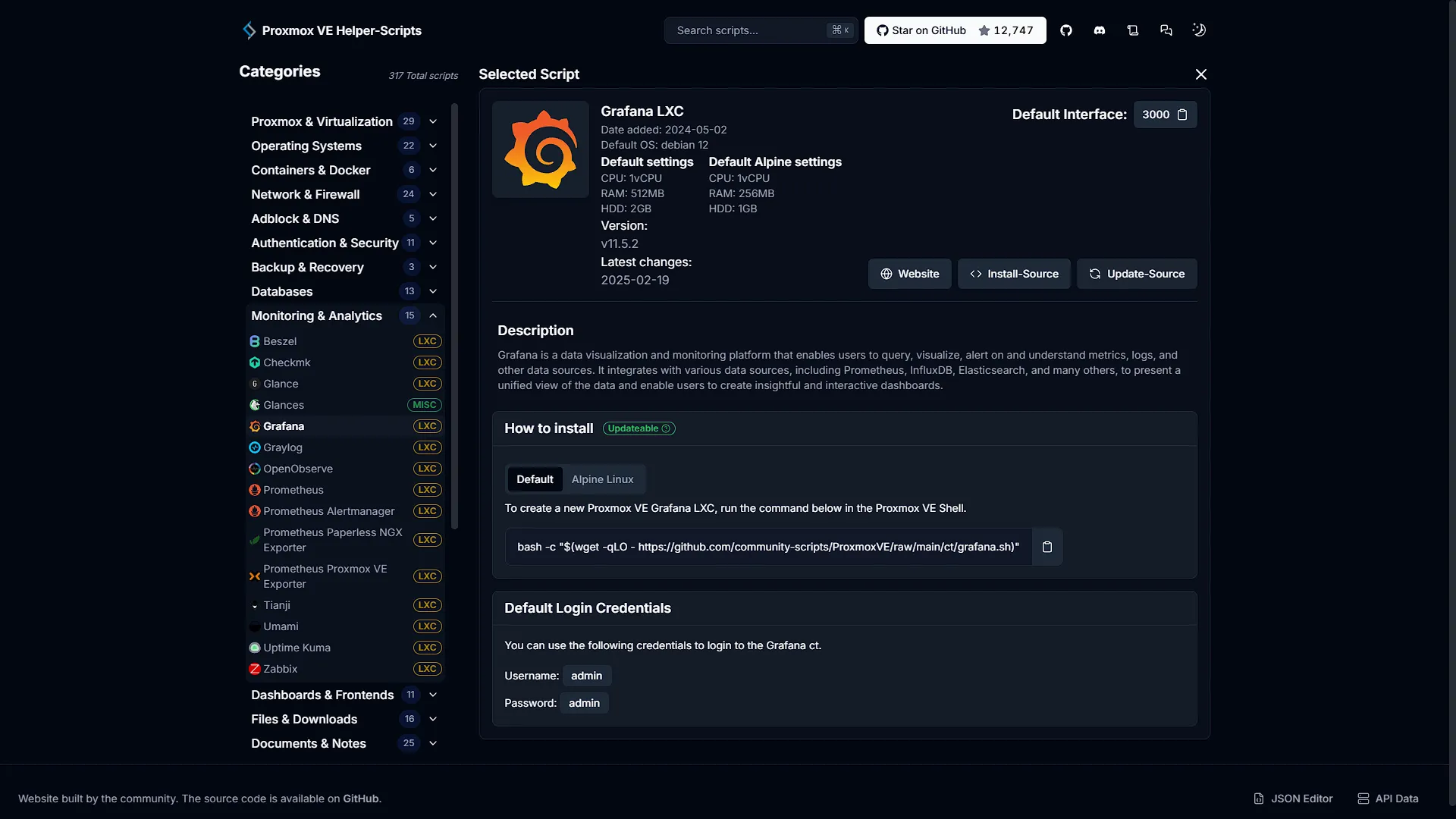

We are going to use our good old helper-scripts.com again to install a new Grafana instance. Go to the site and search for Grafana, there should only be one option.
Grafana on helper-scripts.com
You will see there are two options in this case, one with the default container options, and one for Alpine Linux. Alpine is a extremely lightweight Linux distro, so you can choose either one. The difference in resource usage is:
| Default Install (Debian) | Lightweight Install (Alpine) |
| CPU: 1vCPU RAM: 512MB HDD: 2GB | CPU: 1vCPU RAM: 256MB HDD: 1GB |

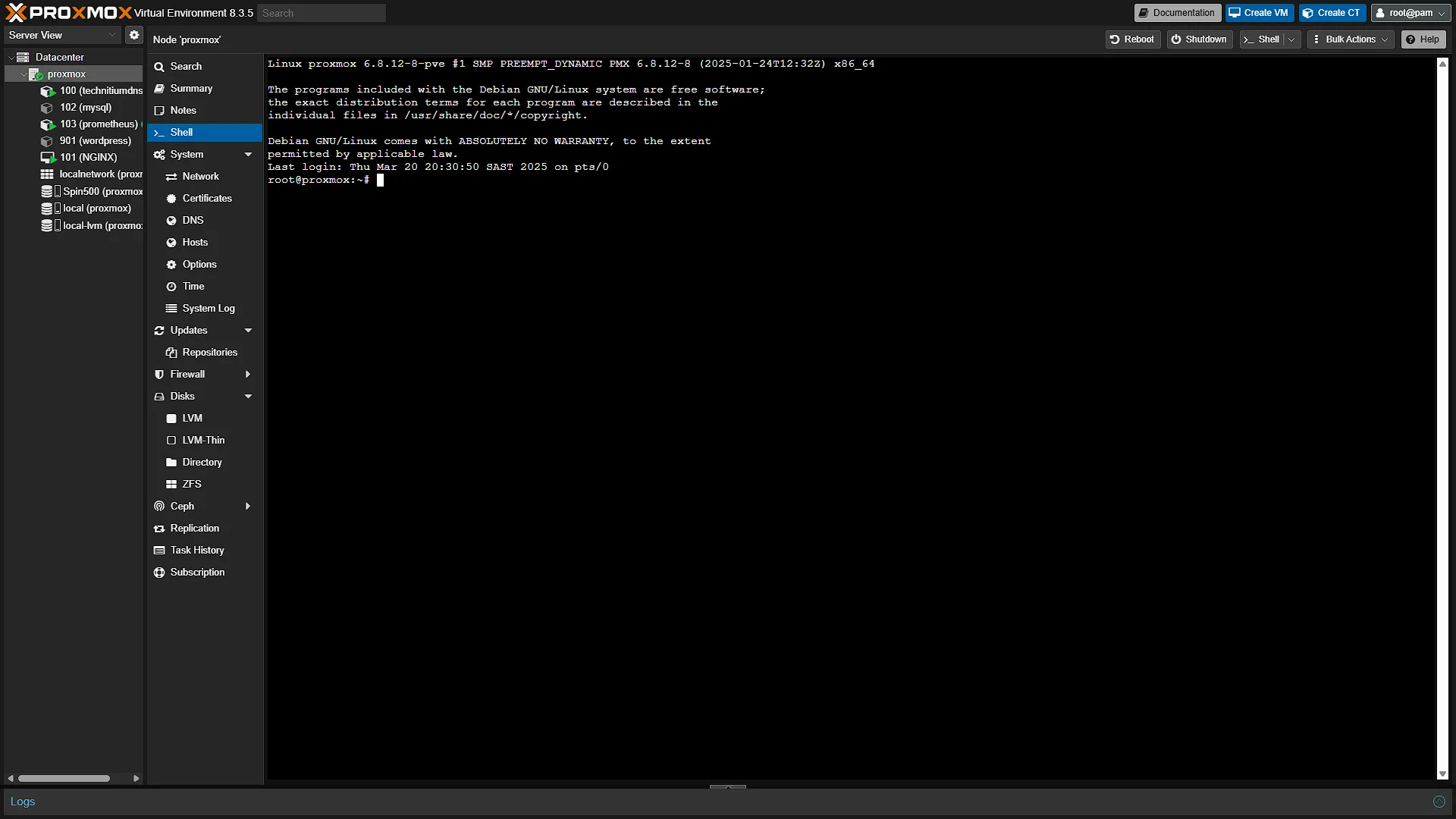

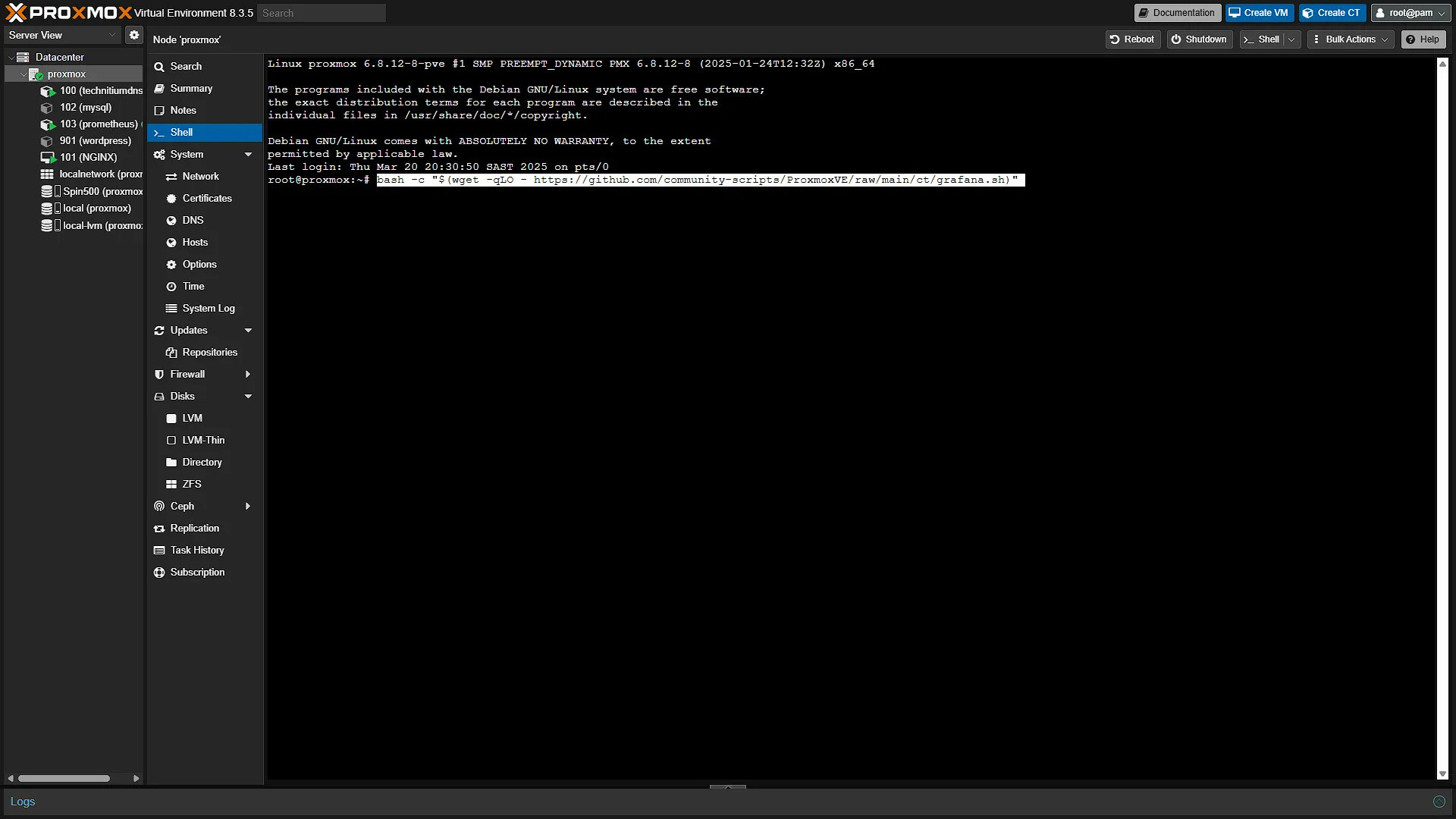

Whichever one you choose, log into your Proxmox instance. In the left navigation pane, expand Datacenter and select the Proxmox node you wish to install Grafana on. If you are following along with our Build your own Homelab series, the Proxmox node should be called proxmox. In the middle navigation pane, select
to open a new shell window. Paste the command of the install you choose and press Enter. The install will start.

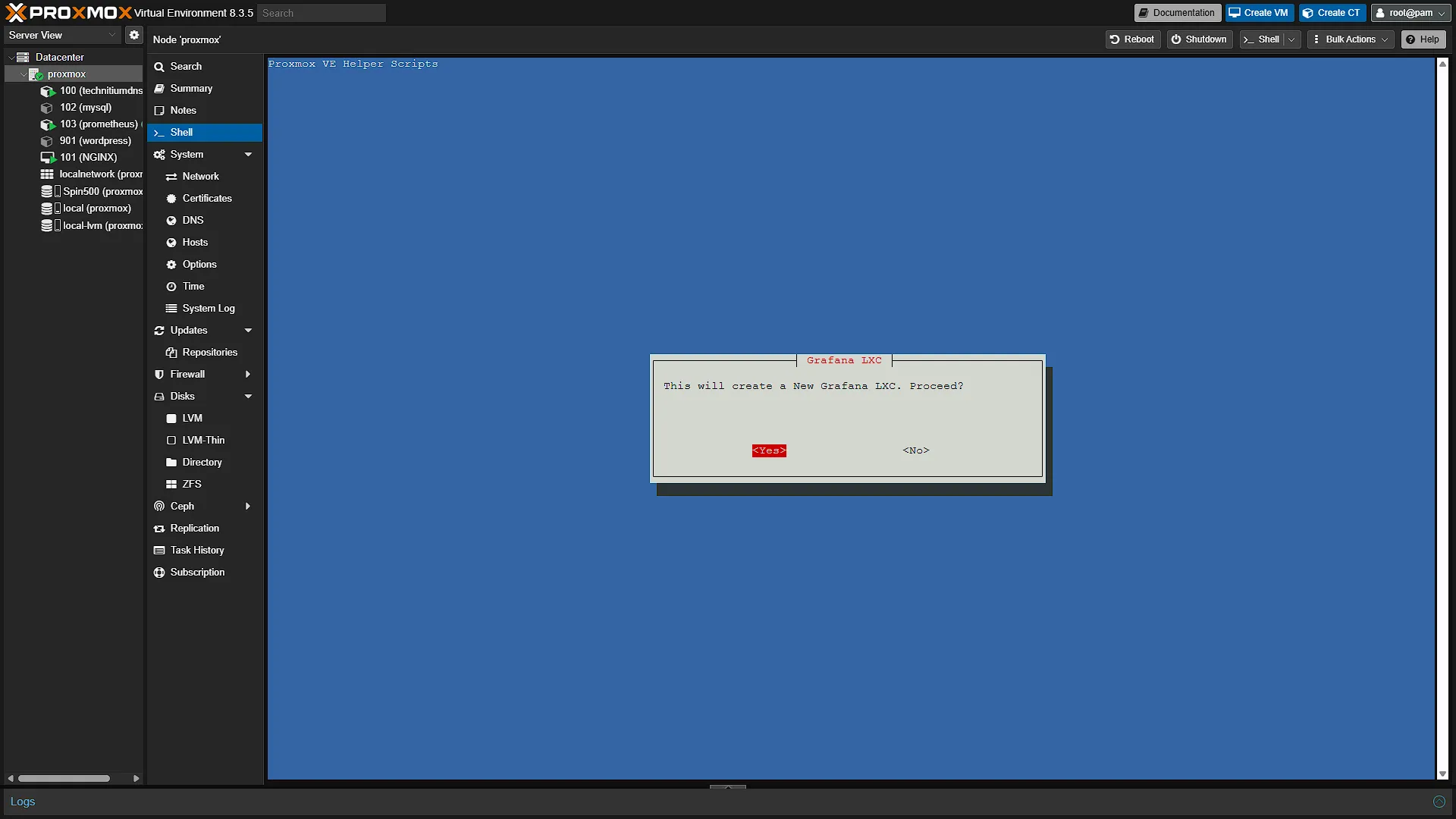

The first screen will be a confirmation, explaining that we are going to install a new Grafana LXC container.

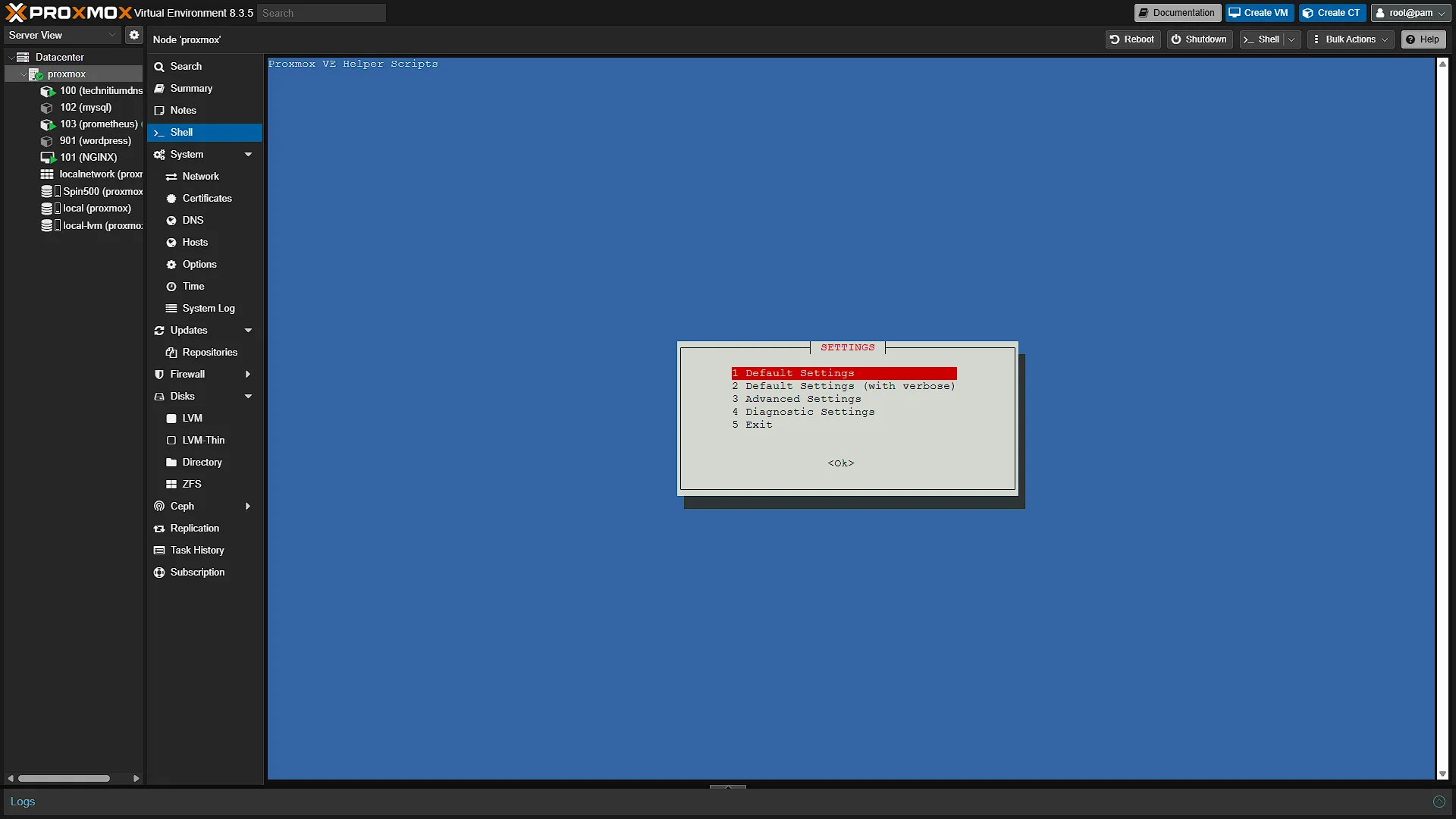

The second will be a screen where we can select the settings. If you want to change the settings, you are welcome, but we are sticking to the default and continuing.

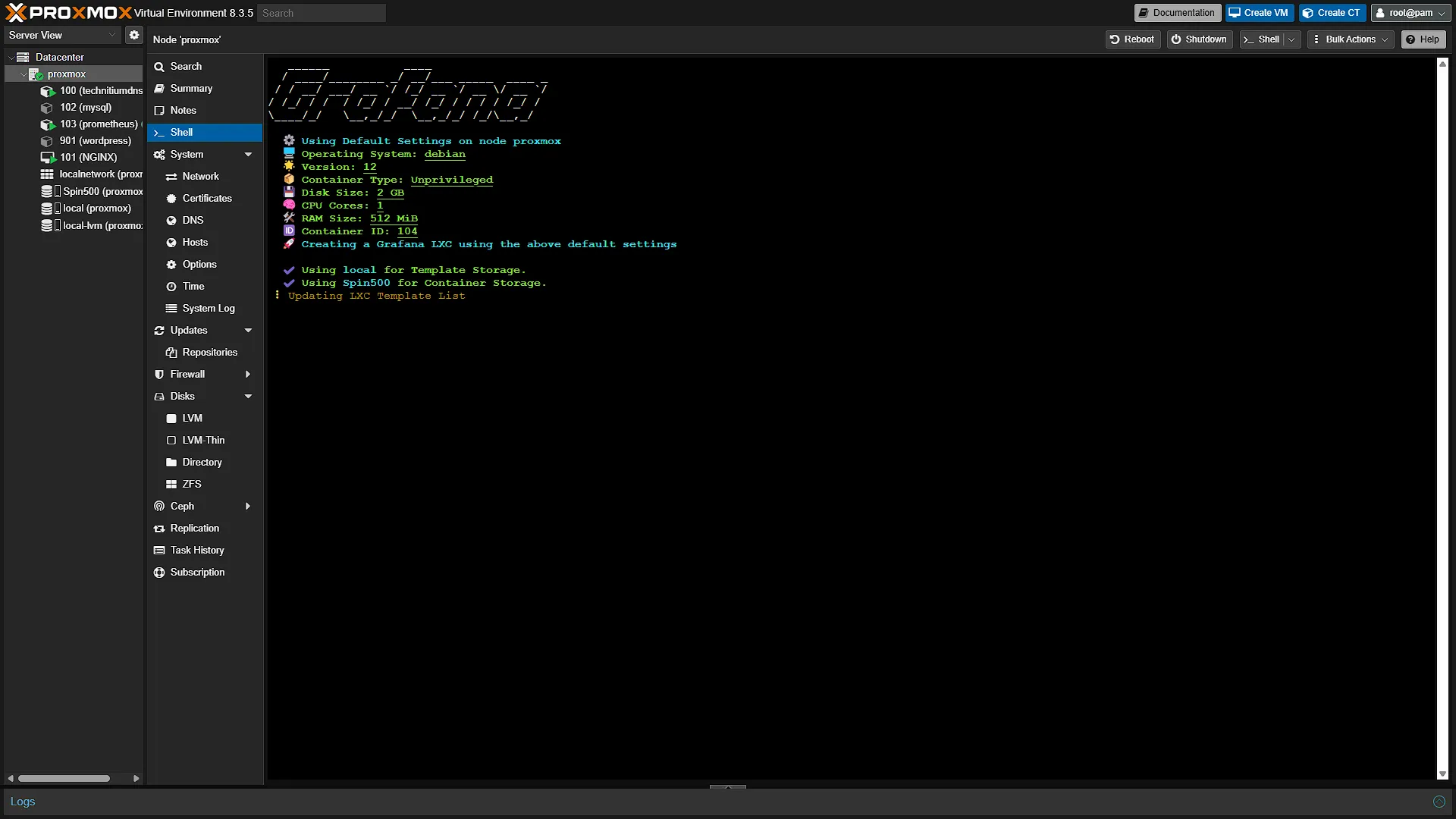

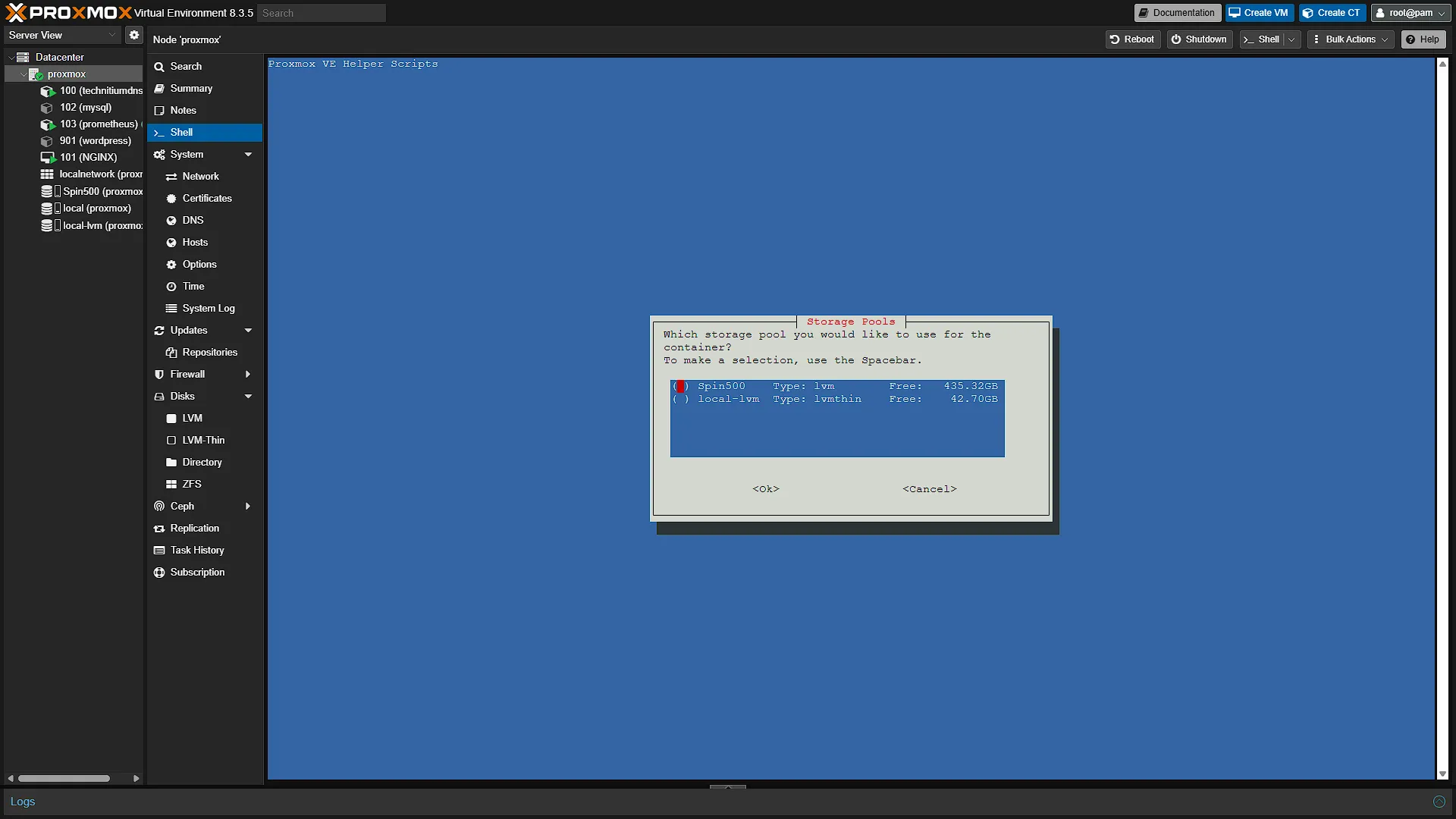

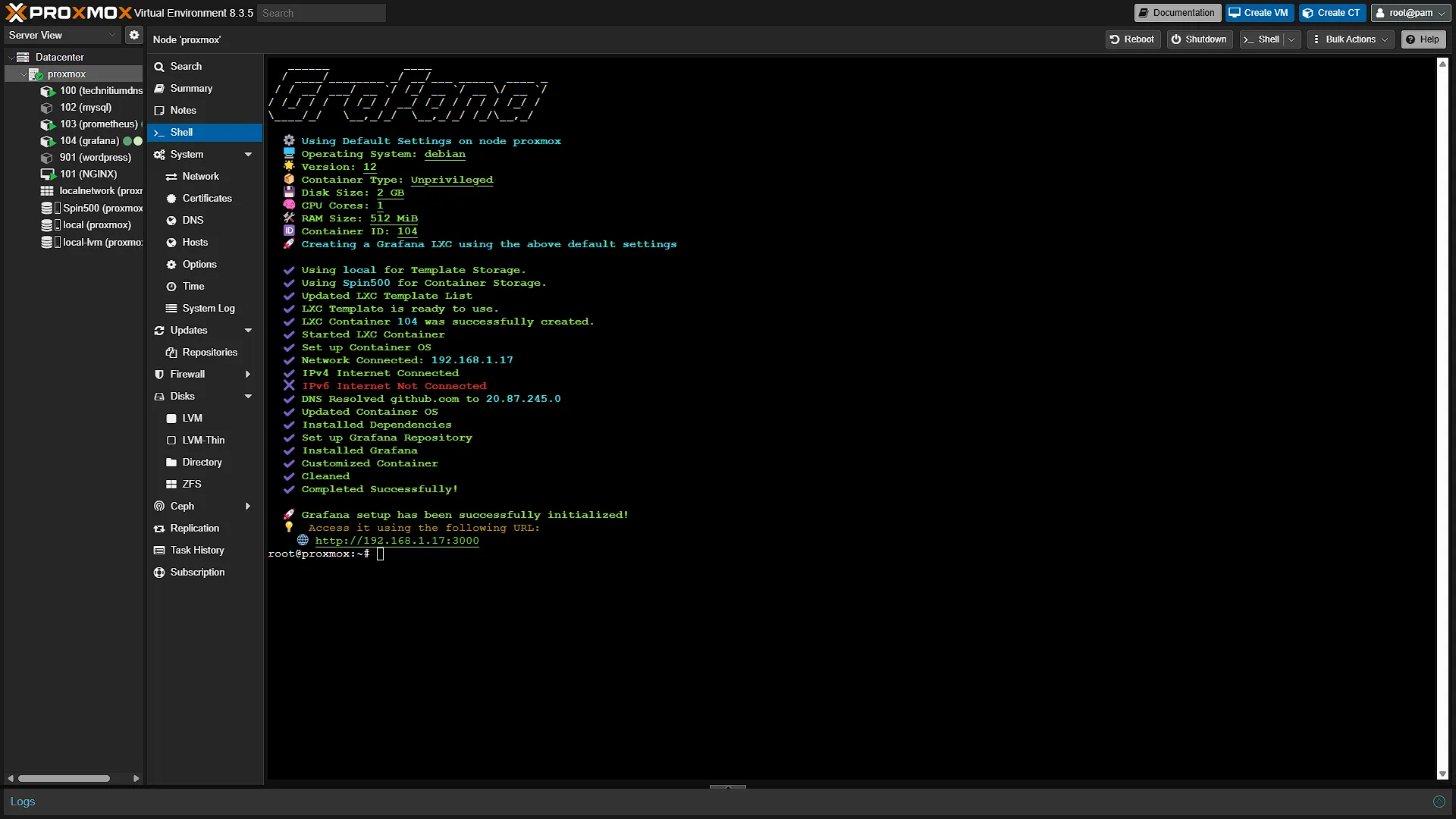

The third modal will ask us to select a disk to install Grafana. If you only have one disk, you will not see this screen. Either way, after this screen the install will start. It might taka few minutes, but once done, you will see s confirmation screen giving you the access URL.
Step 2: Setup Grafana

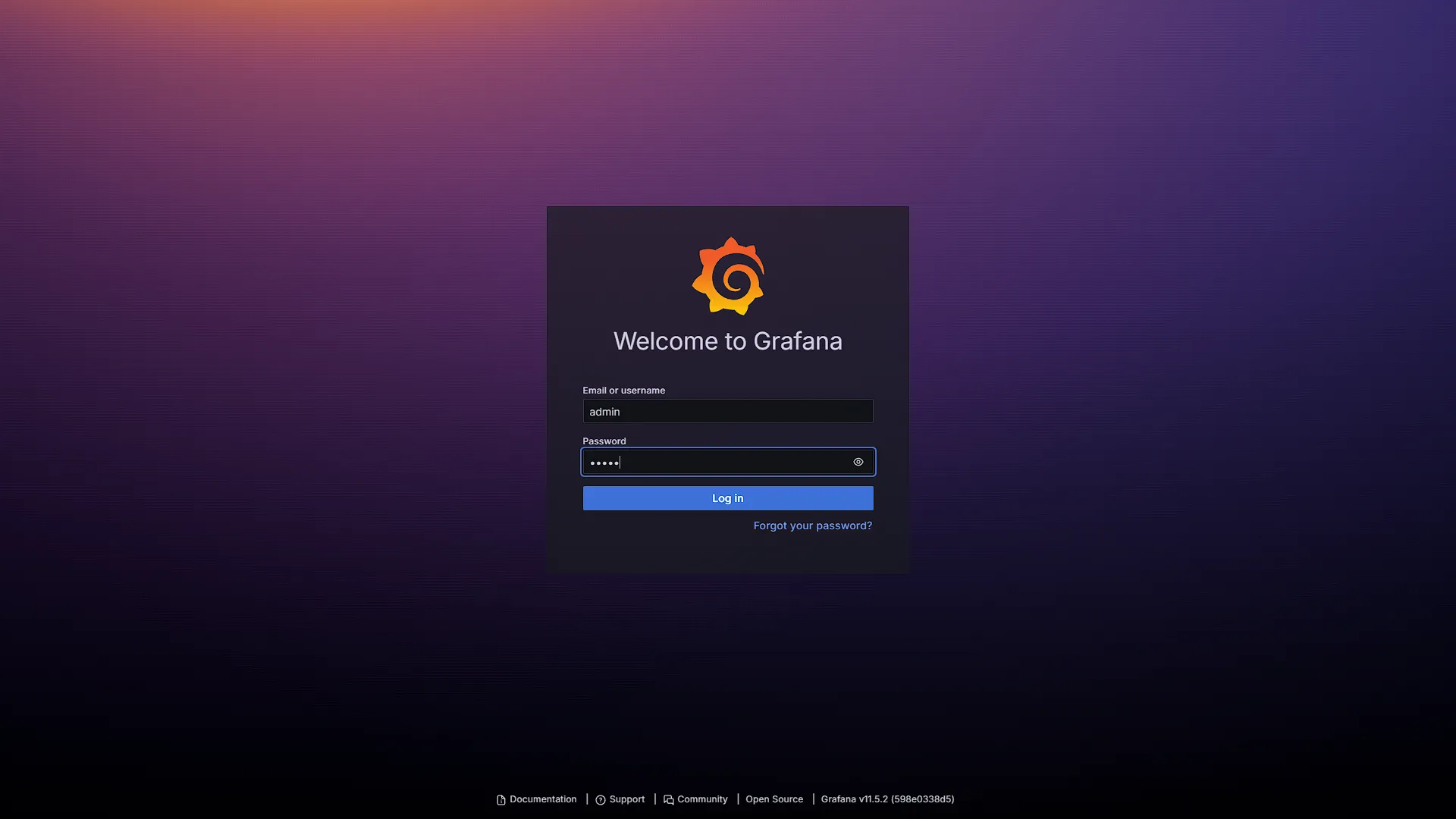

Access the Grafana dashboard in a new window as per the settings provided after install. You will be prompted to log in. Use the default credentials to log in:
Username: admin
Password: admin

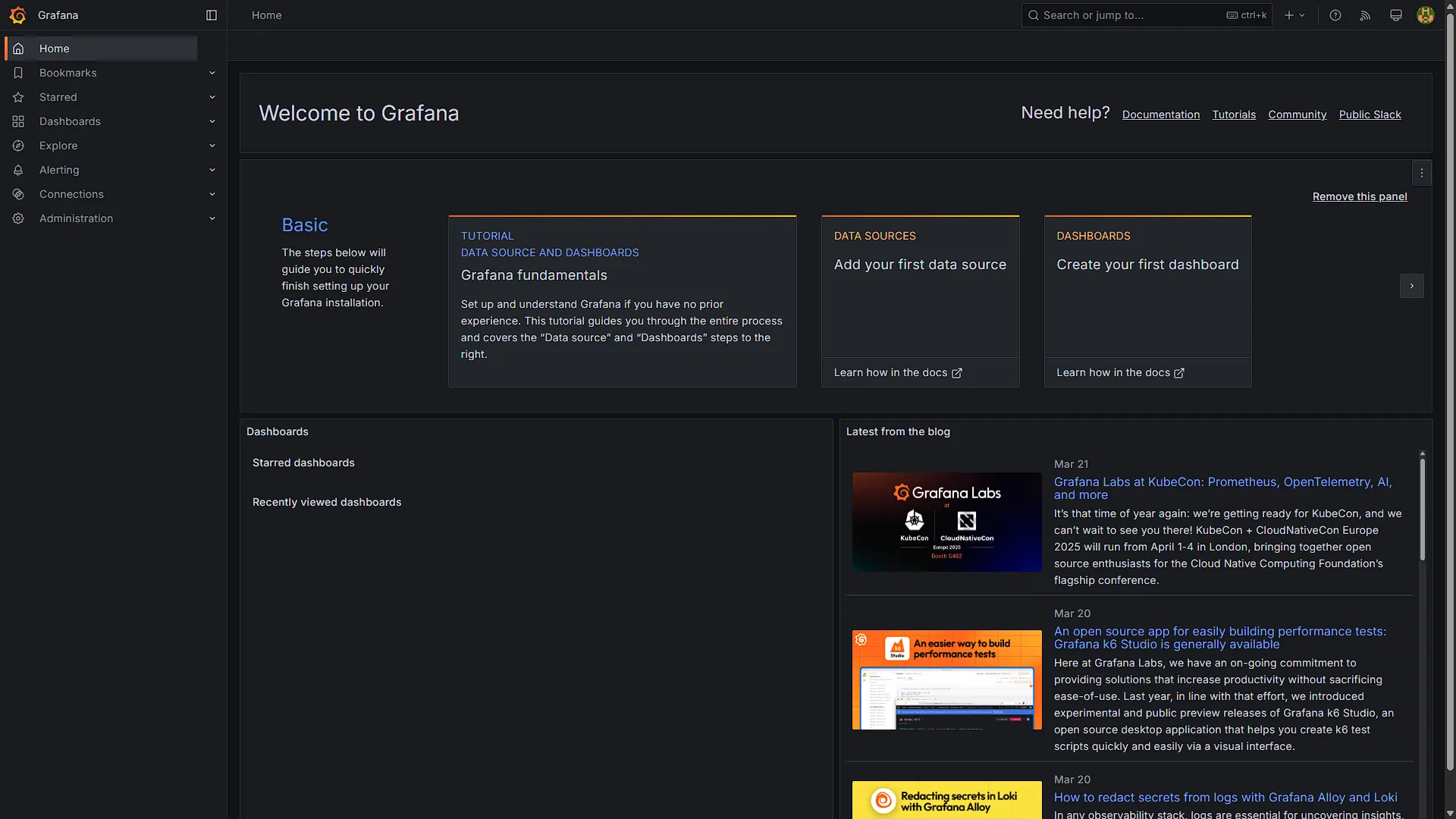

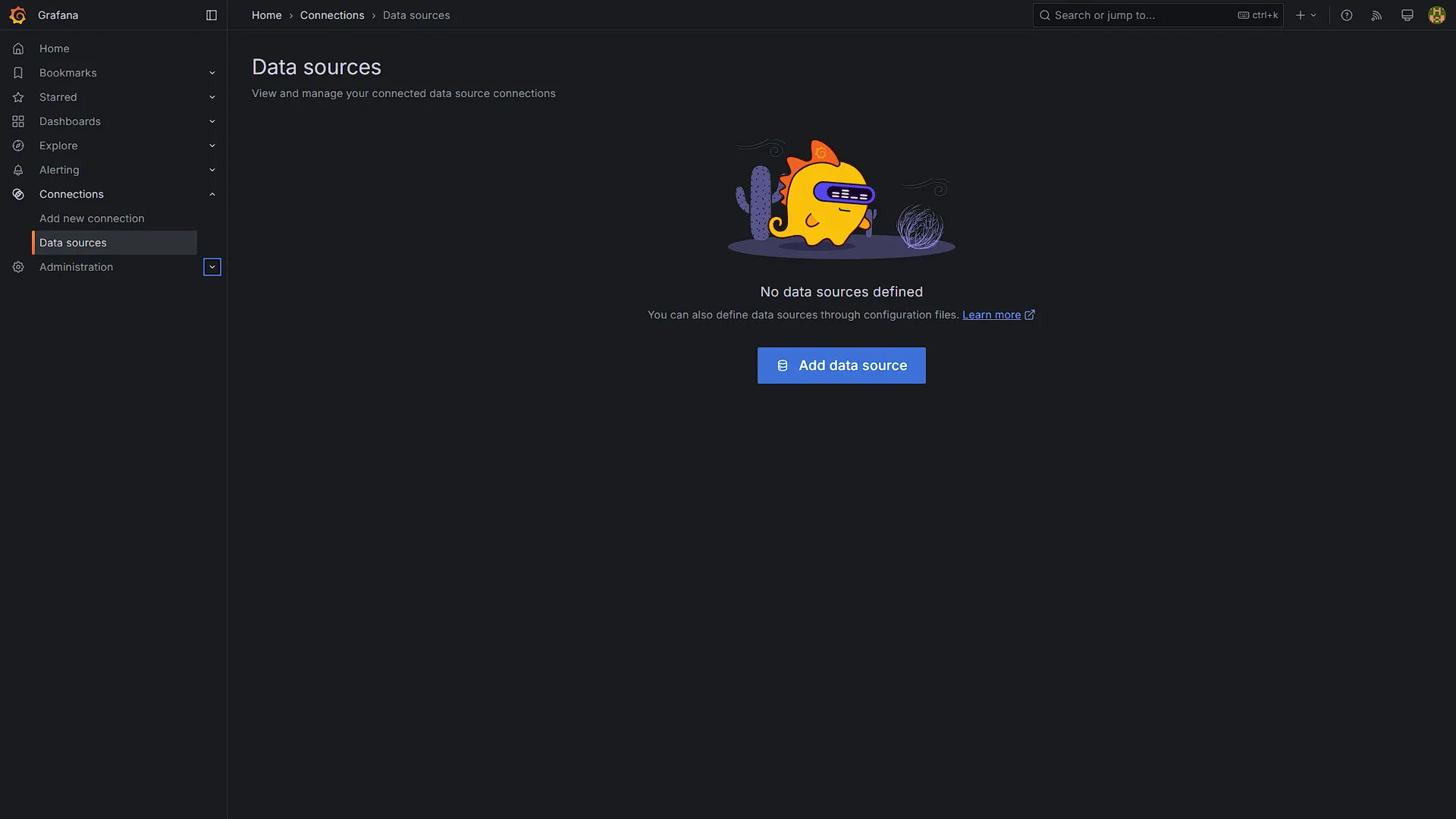

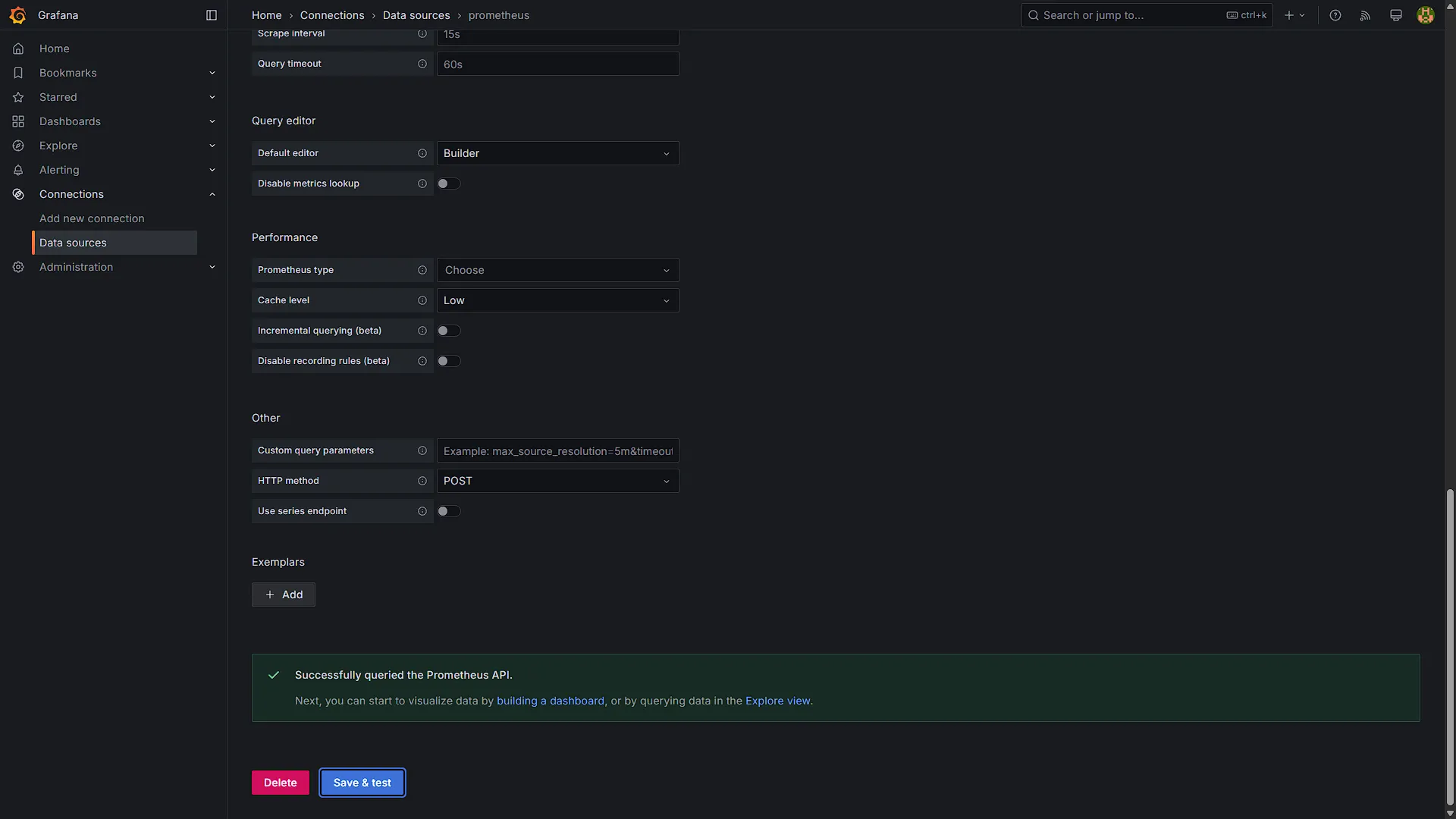

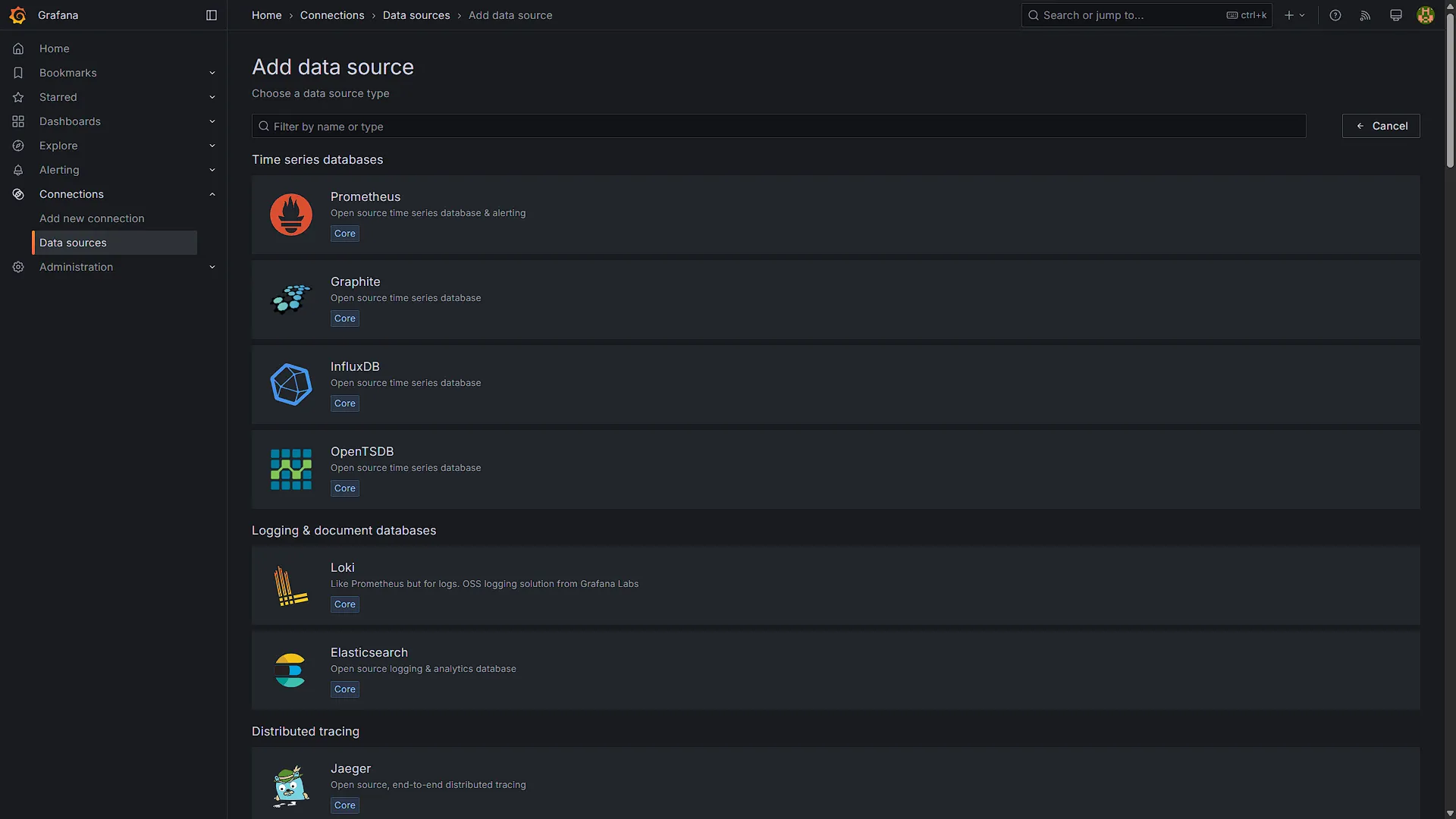

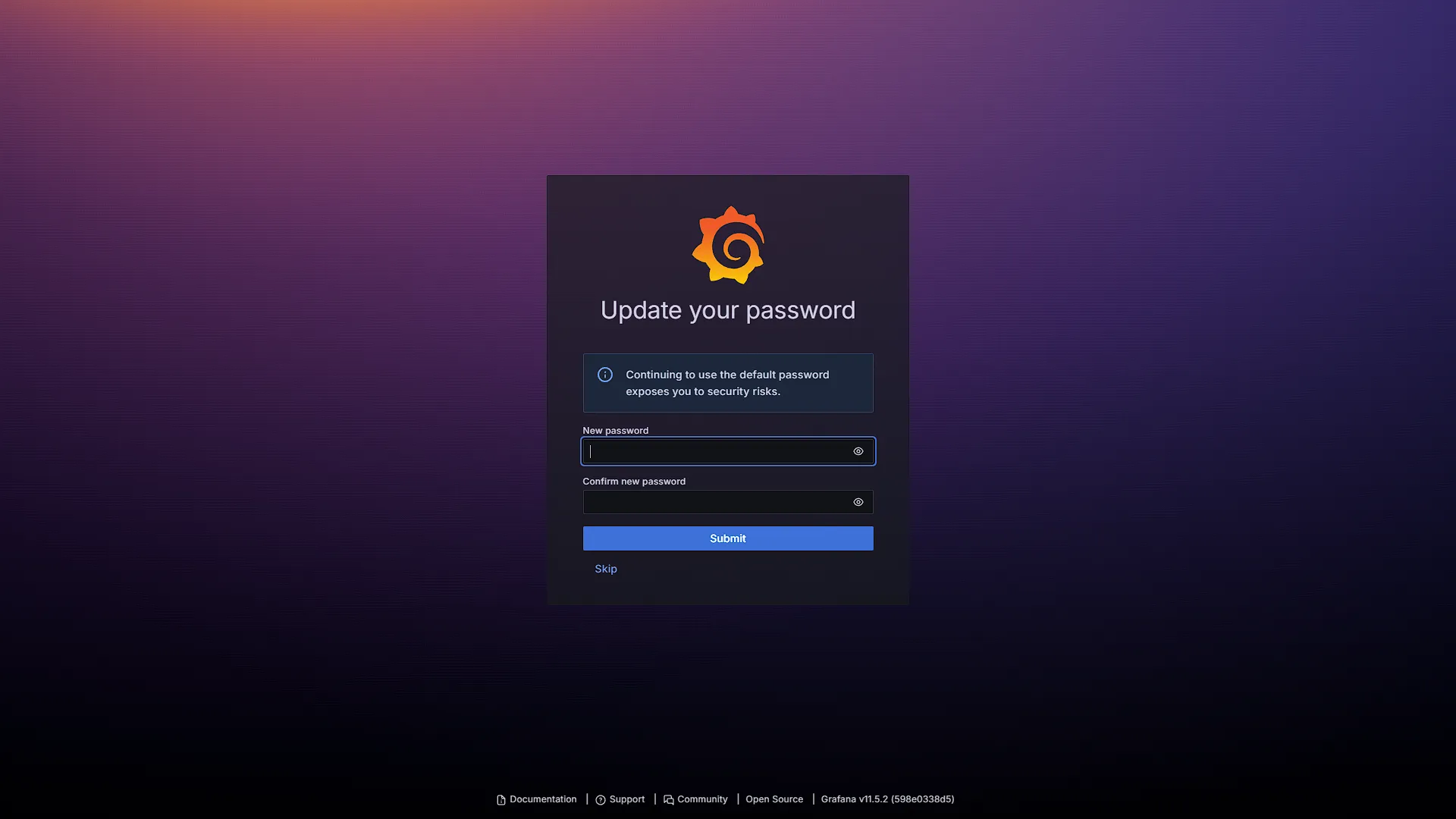

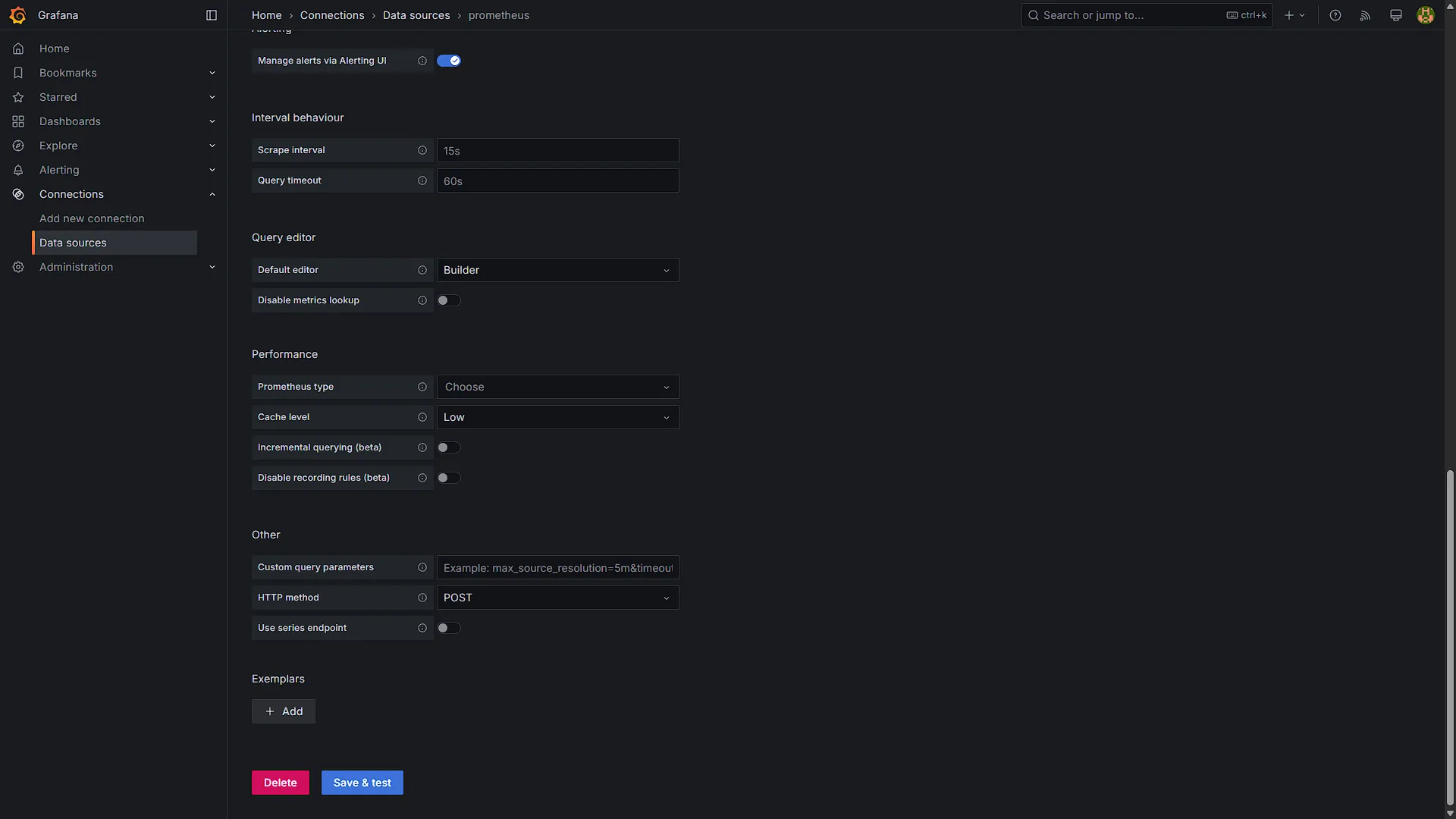

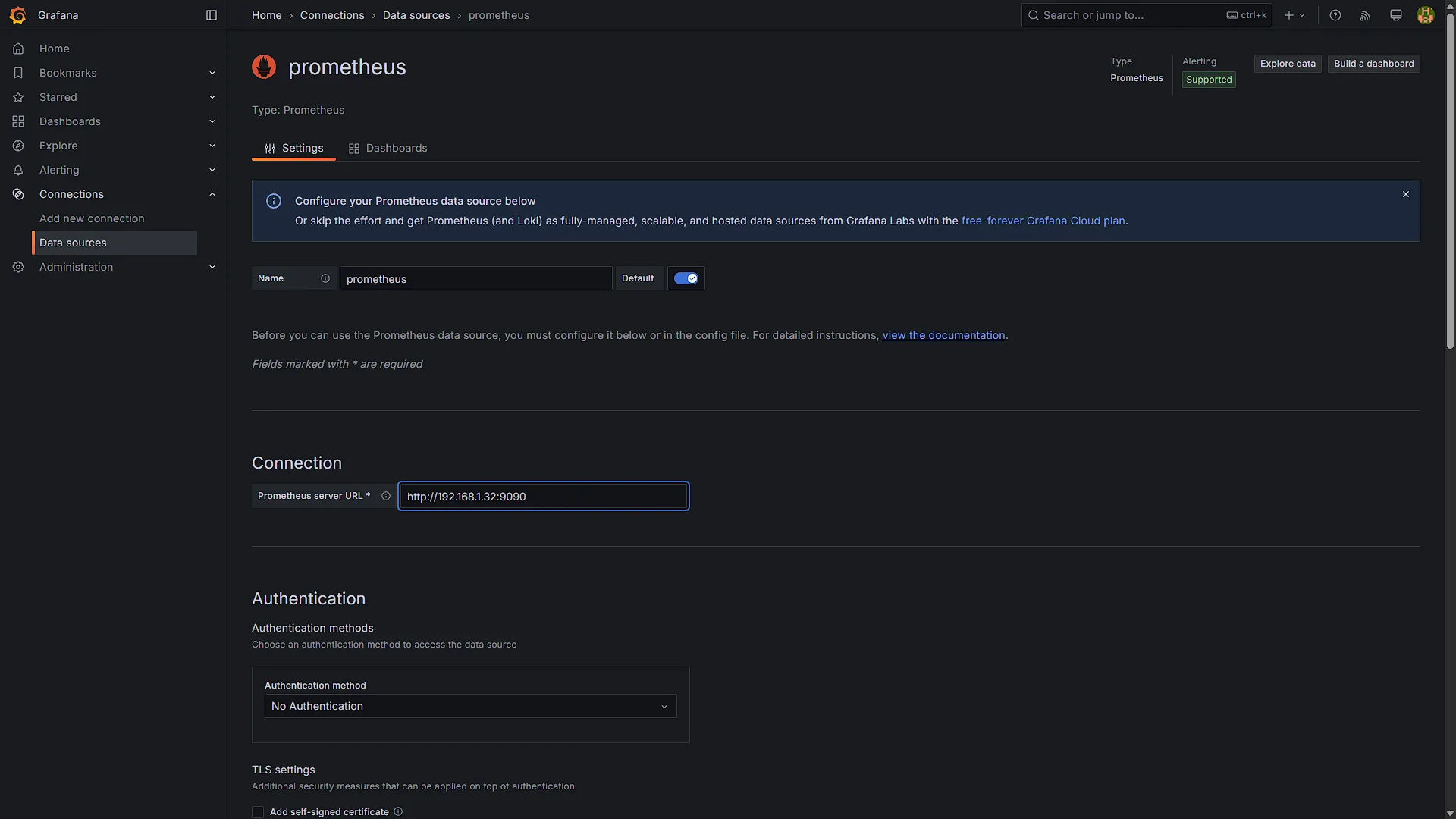

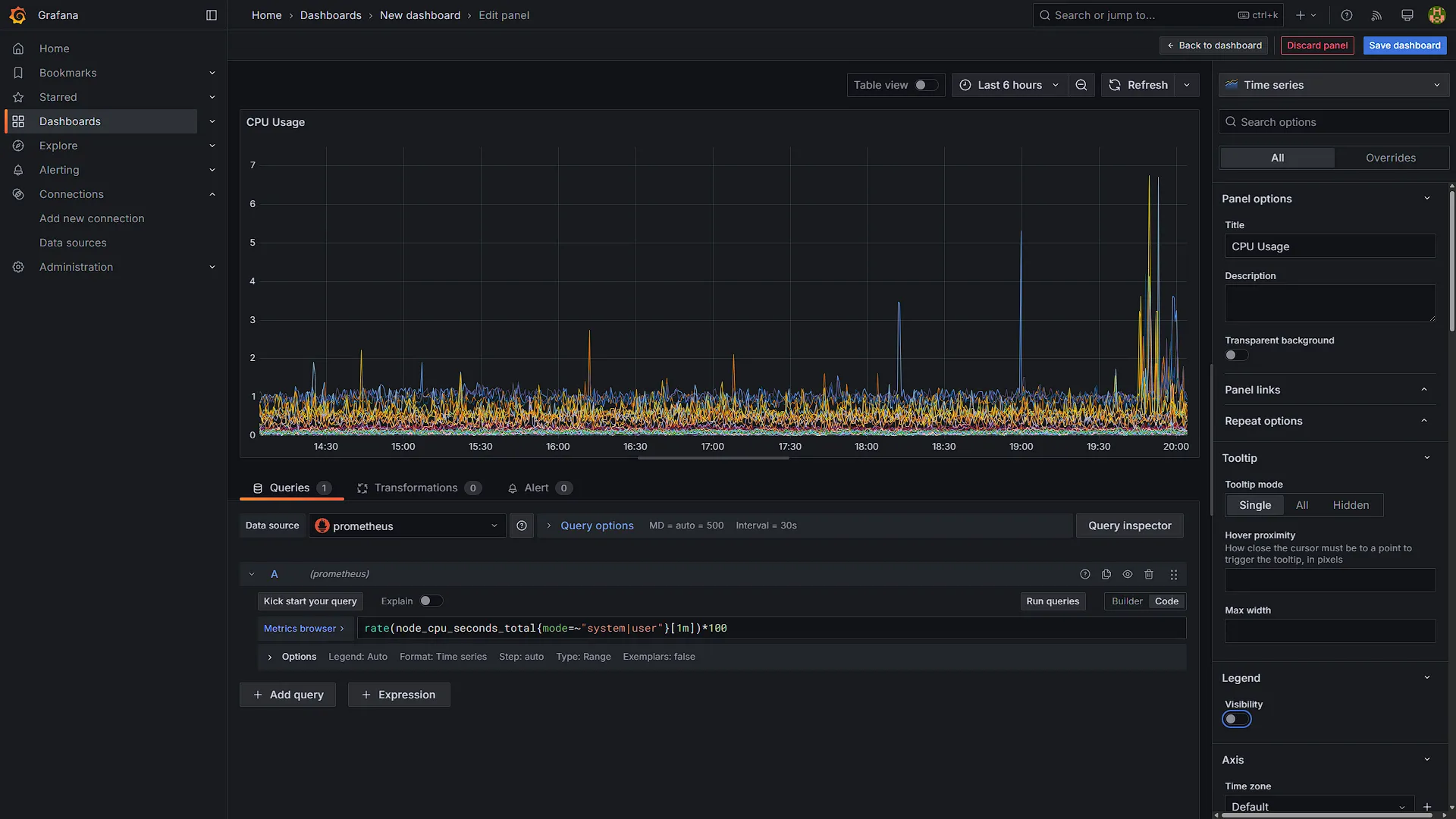

Once logged in, you will be prompted to select a new password for the admin account. Once added, in the left navigation pane, select Connections, and then Data Sources. We need to add a new data source, in our case we will select a Prometheus data source. Enter the IP address where you access Prometheus and click on Save & Test. If the data source was successfully added, we can start with a new visualisation. In stead of the builder, rather use the code tab and use any of the following presets:
CPU Usage per core: rate(node_cpu_seconds_total{mode=~"system|user"}[1m])*100
Network Traffic Received: rate(node_network_receive_bytes_total[1m])
Network Traffic Sent: rate(node_network_transmit_bytes_total[1m])
Hard Drive Usage: 100 - ((node_filesystem_avail_bytes{mountpoint="/",fstype!="rootfs"} * 100) / node_filesystem_size_bytes{mountpoint="/",fstype!="rootfs"})
Conclusion

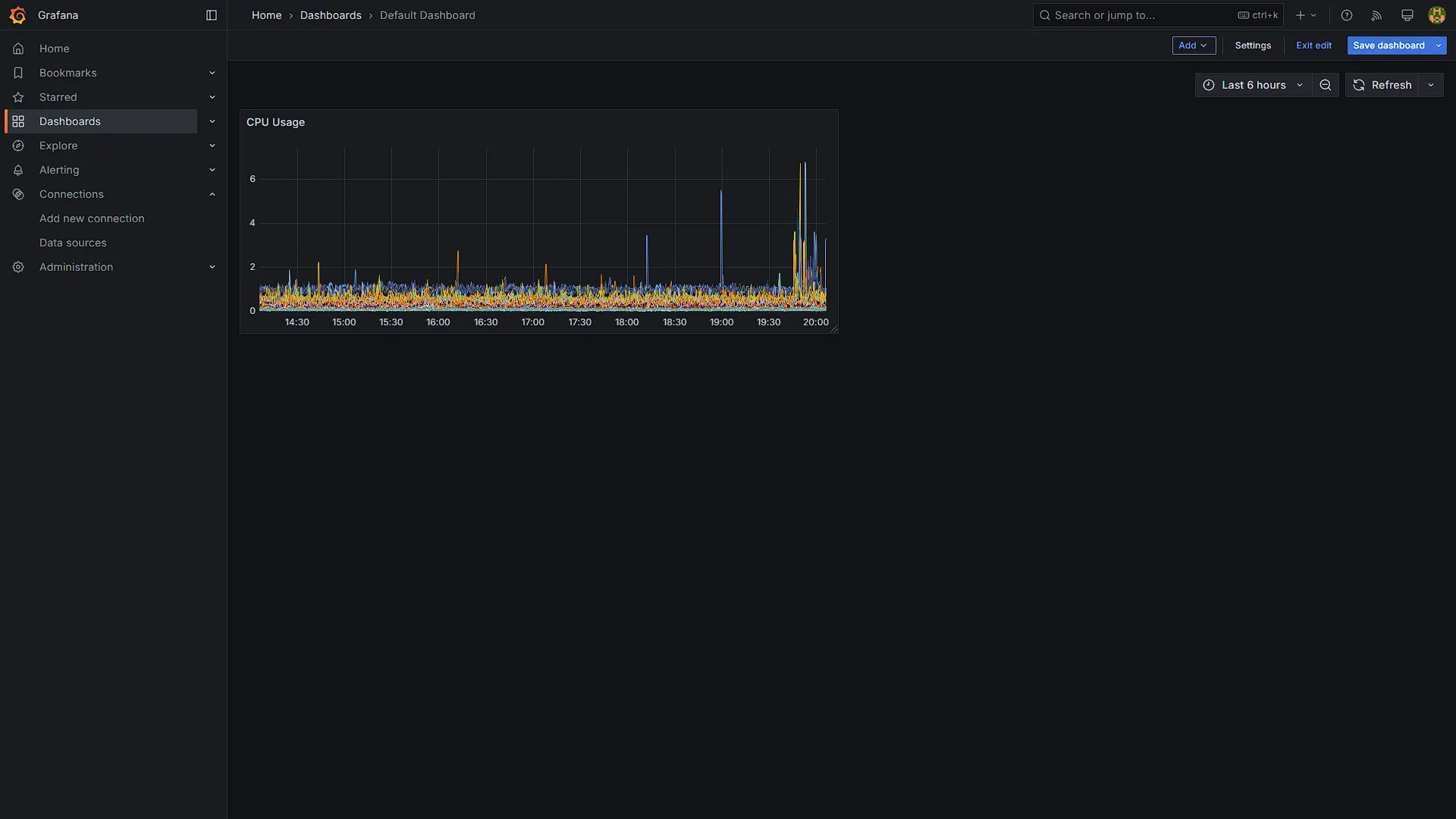

Now we have a great visual dashboard displaying our Prometheus data in a suer friendly and easy to understand way. This will keeps logs of our Prometheus export nodes that can monitor all our services. We can use this data to see if we need to increase any resources for any app we are running, but also monitor if any service starts acting in a bad way so we can isolate and stop it. We hope you are enjoying our series so far, we will now start with some more useful and fun apps to use in your Homelab.
