Today we wrap up the configuration of our Headscale installation so that we can access our Local resources when not at home. We have installed Headscale, configured the Headscale server and have a client set up on our Android phone that can connect to our internal Headscale/Tailscale network, but can’t access any services. Today we are going to set up Exit nodes so that we can access our network services.

---

Step 1: Install Tailscale

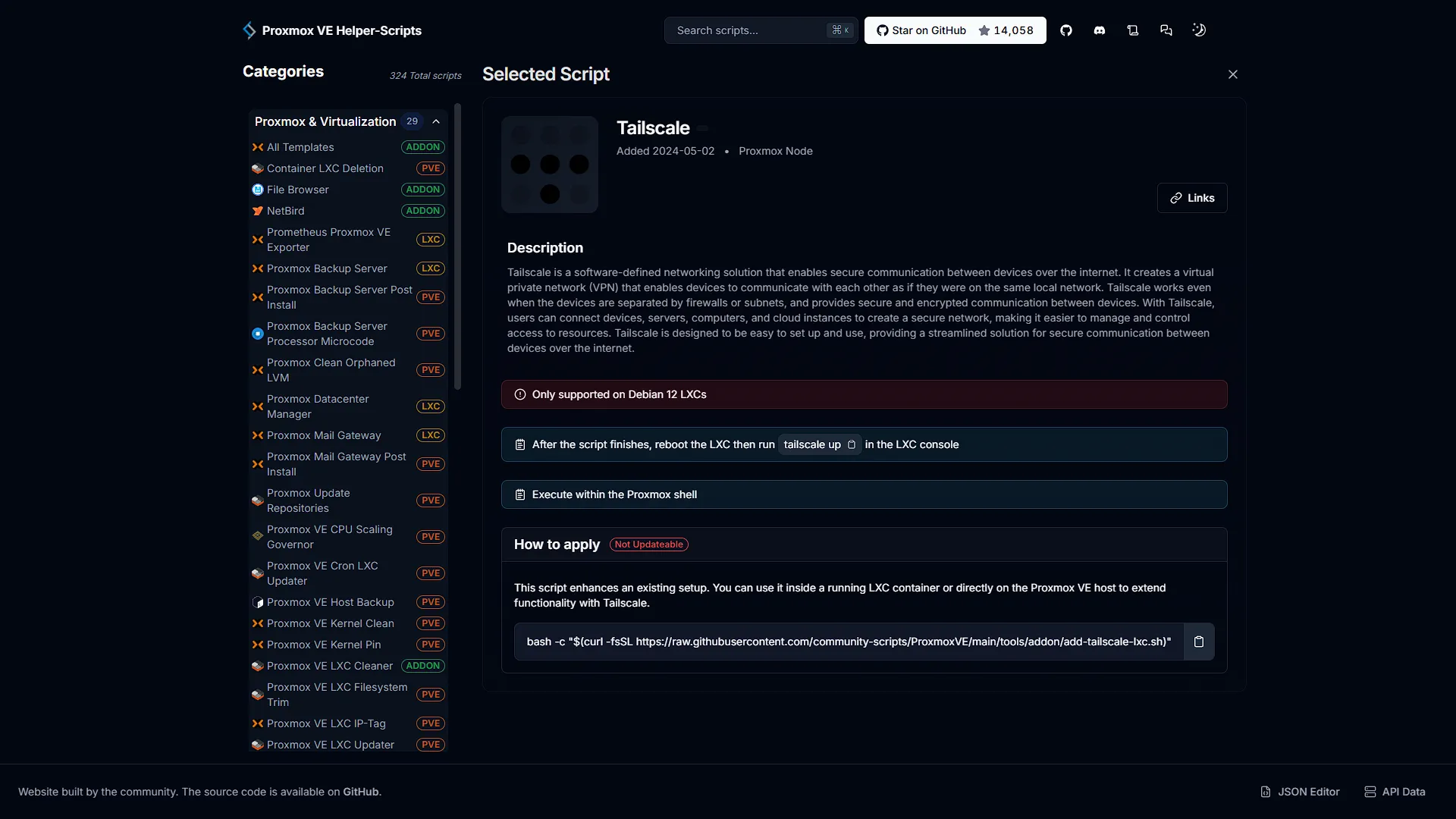

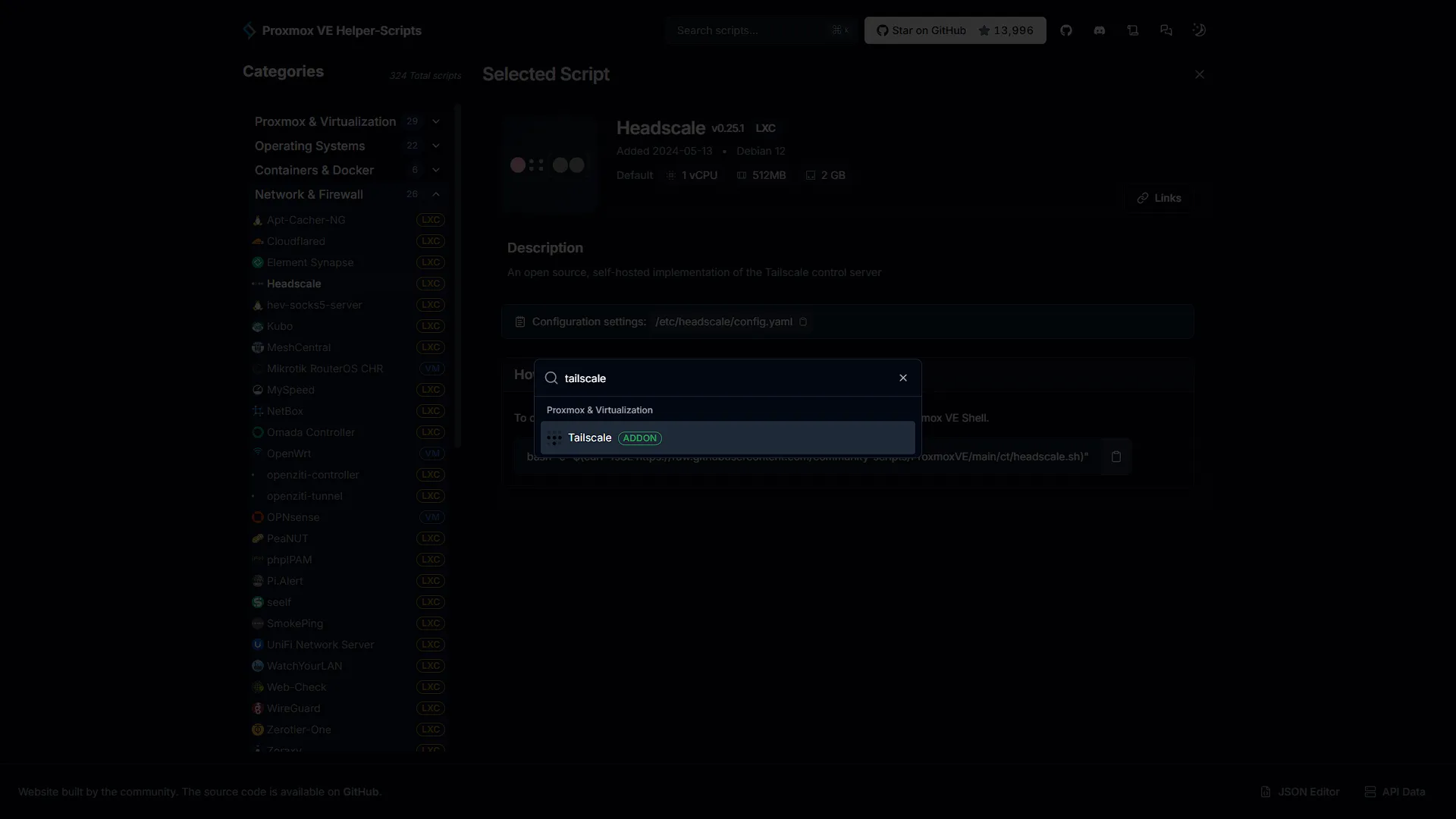

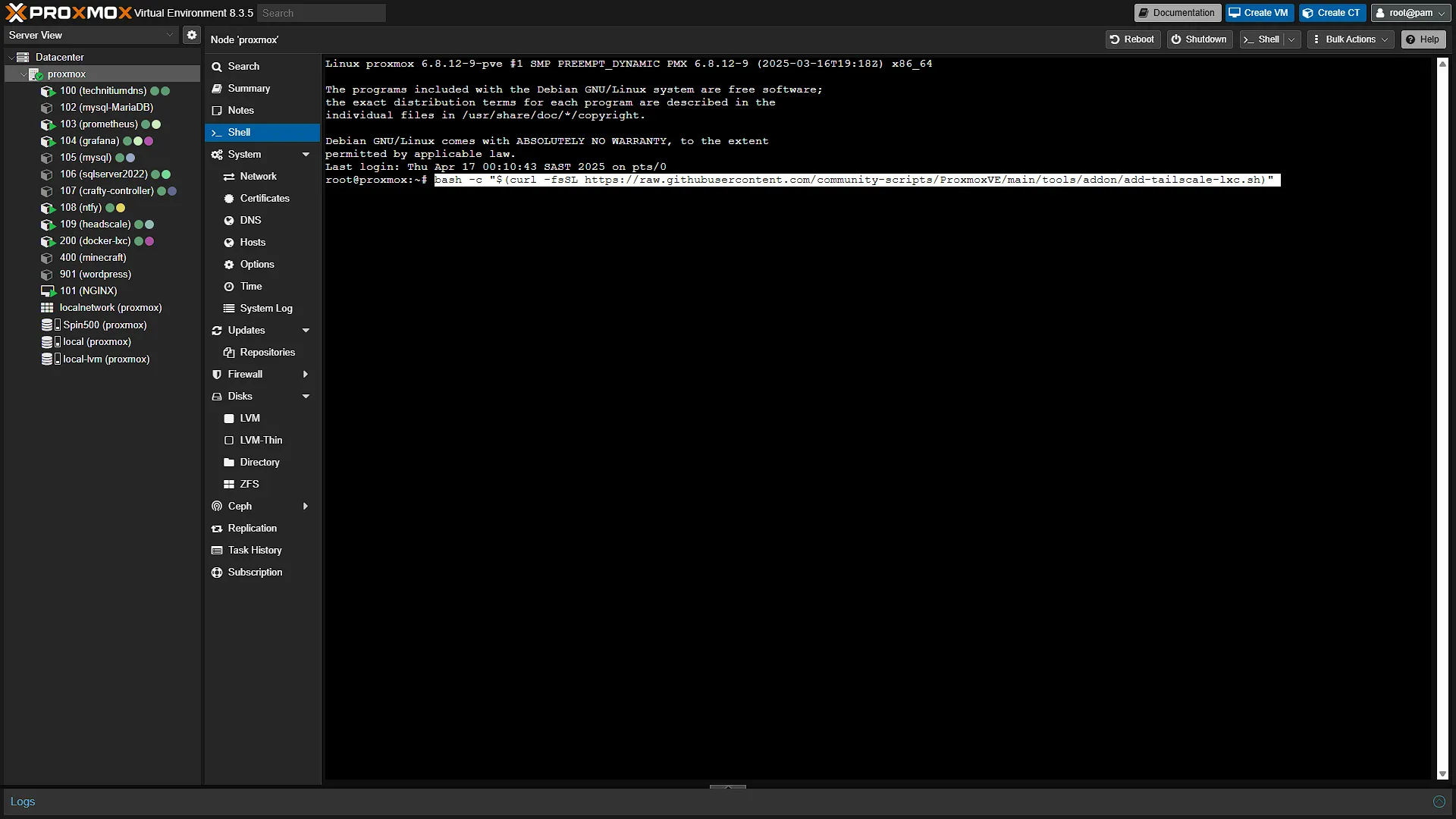

Yes, you read that right. We need to install Tailscale, even though we are using Headscale. The installation of Tailscale in Proxmox is actually a fairly intricate (and extremely frustrating) endeavour, but luckily we have friends over at helper-scripts.com that has simplified everything yet again. Go over to their site and search for tailscale. There will only be one result – this time it is classified as ADDON and not LXC or VM as we are used to. This is because Tailscale is added to an existing LXC container. So, in stead of running it in the LXC container’s Console, we need to run it is the Shell of the Proxmox main node. Run the command:

bash -c "$(curl -fsSL https://raw.githubusercontent.com/community-scripts/ProxmoxVE/main/tools/addon/add-tailscale-lxc.sh)"

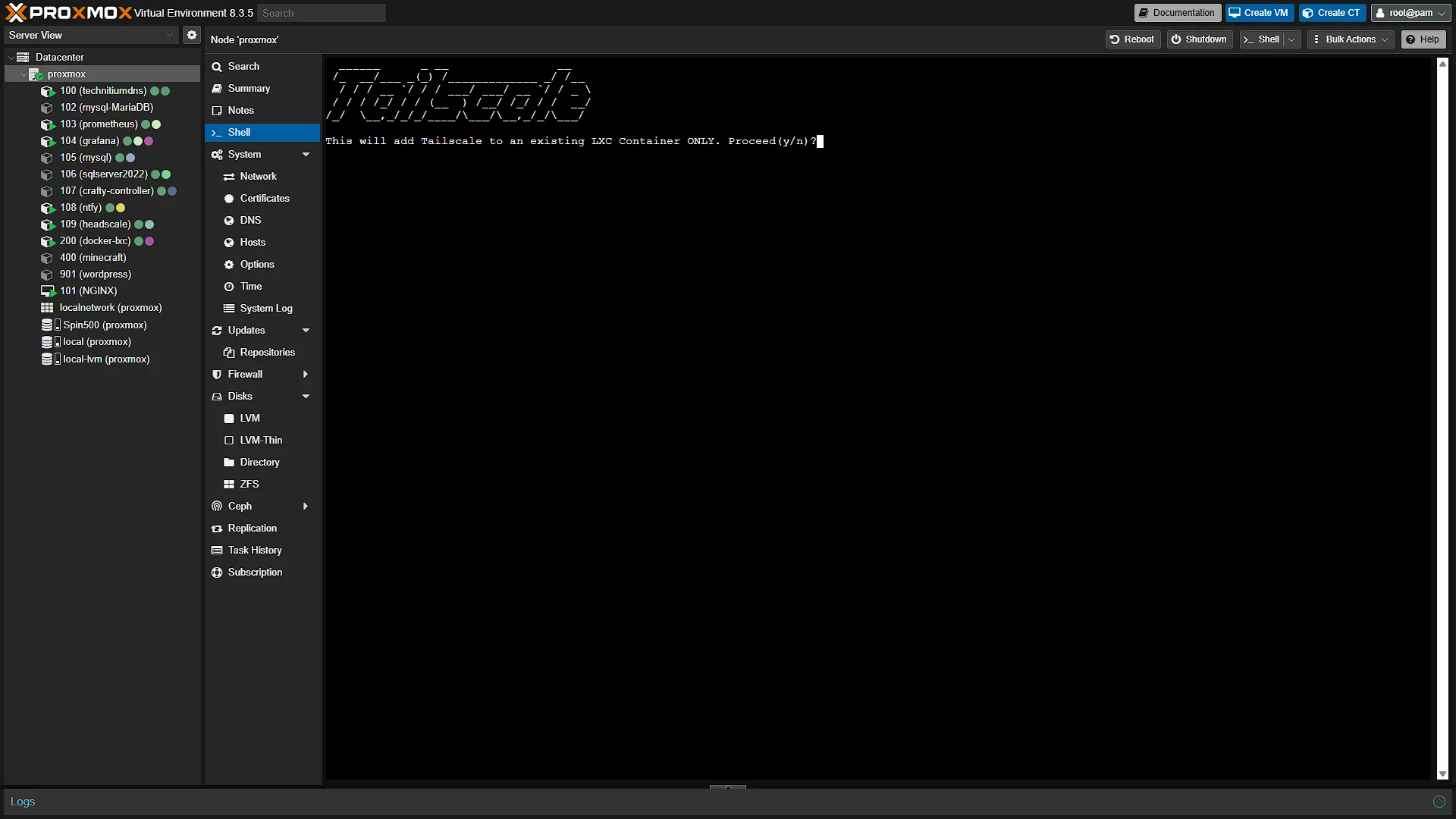

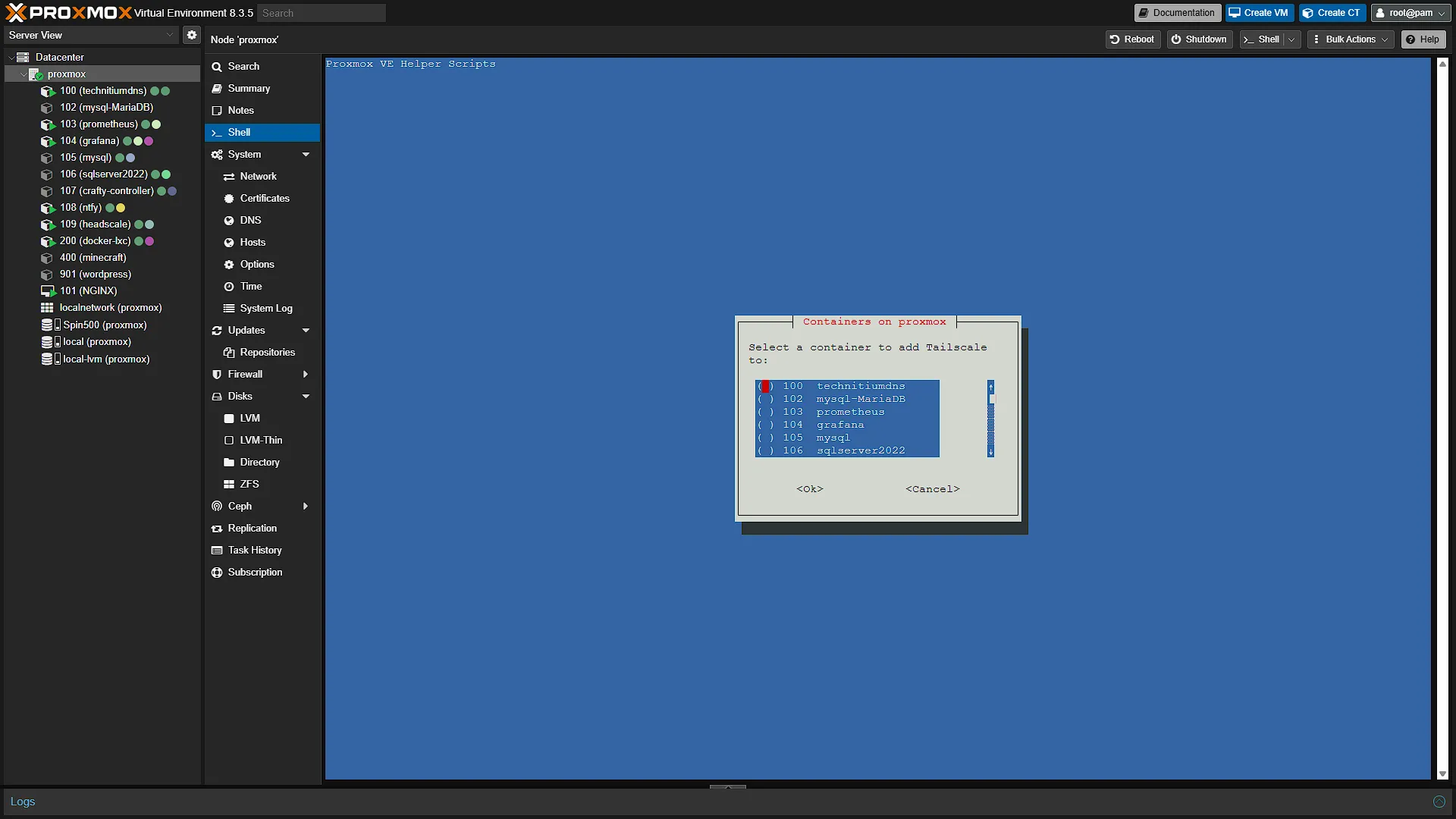

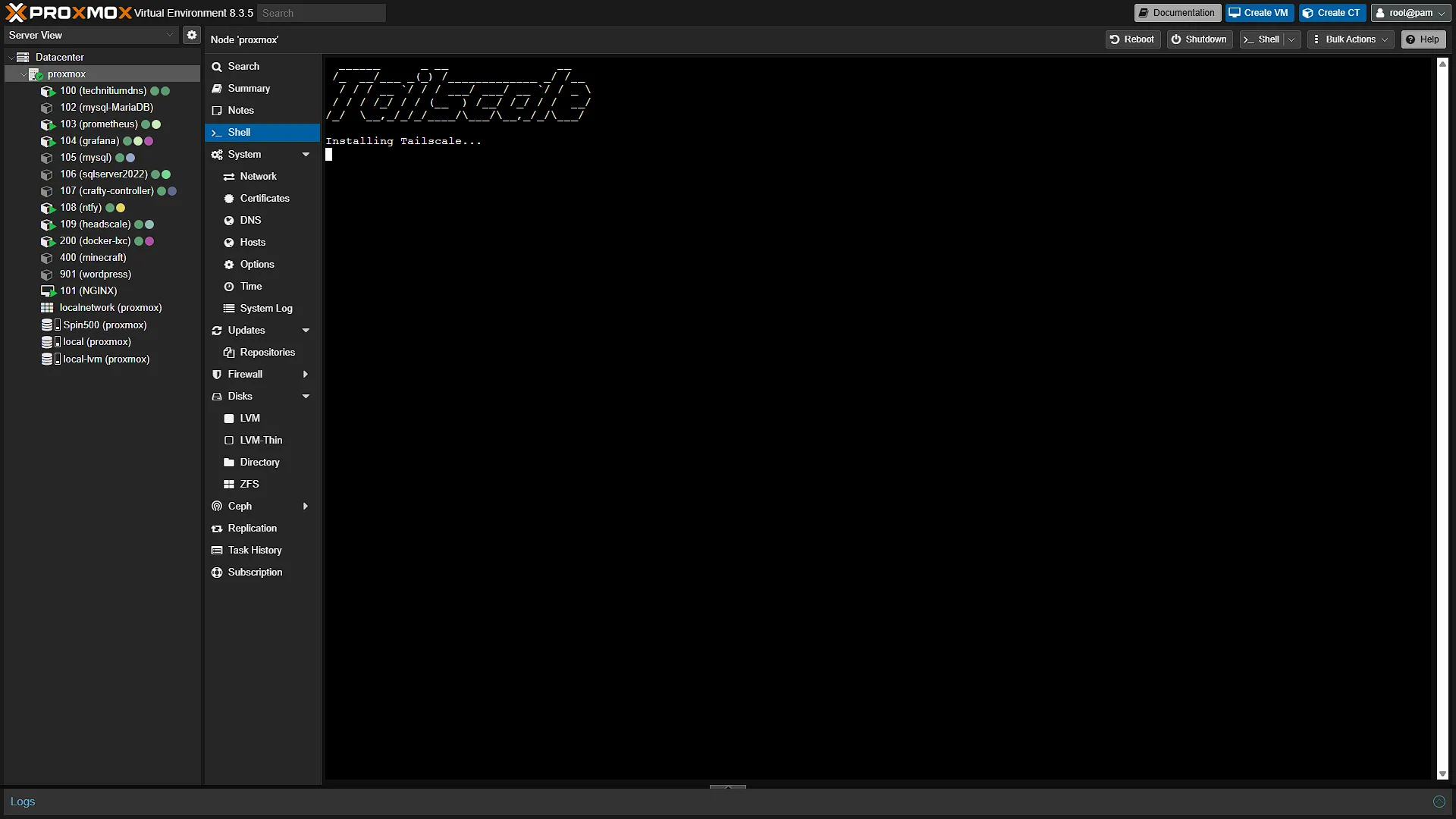

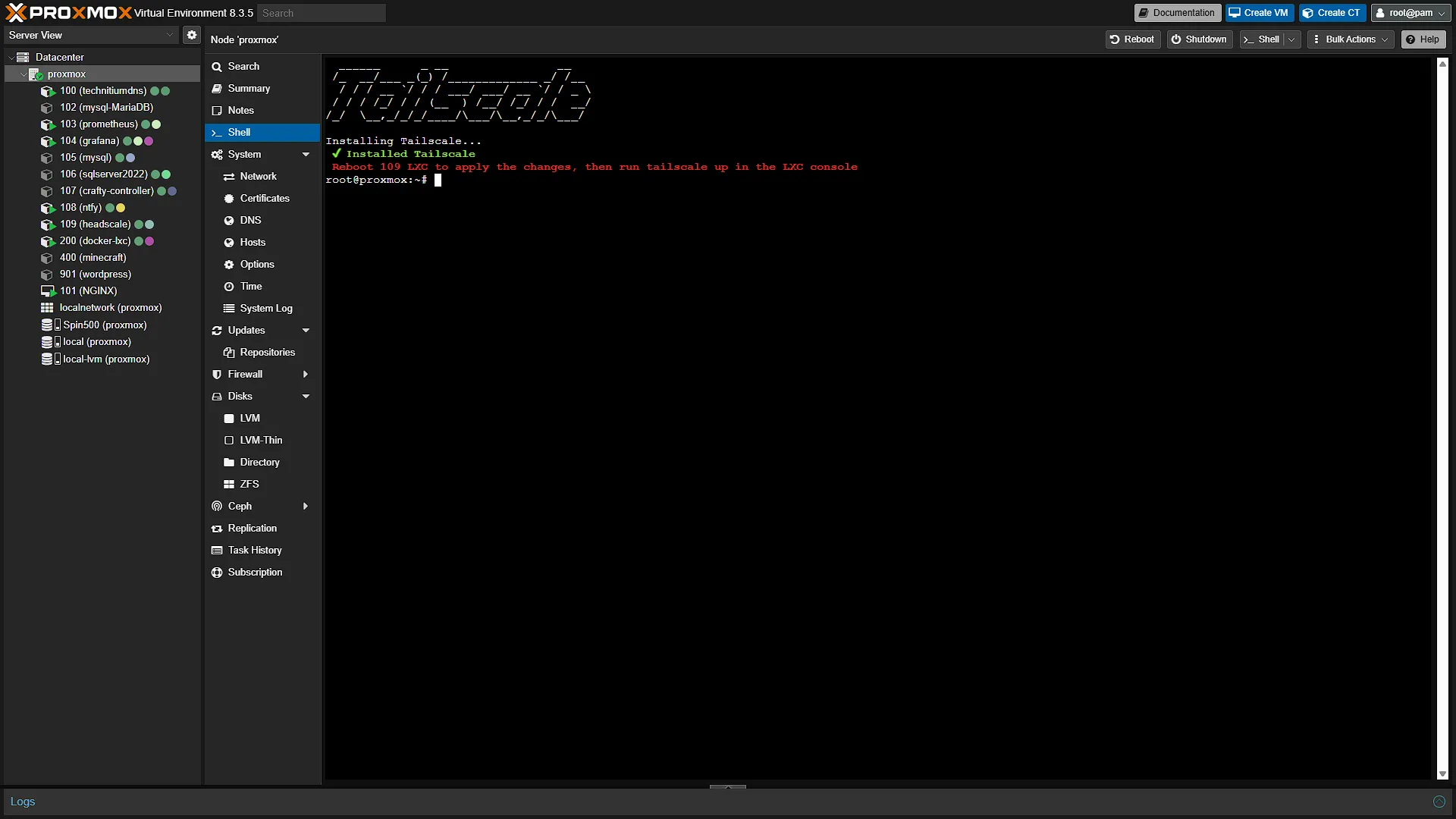

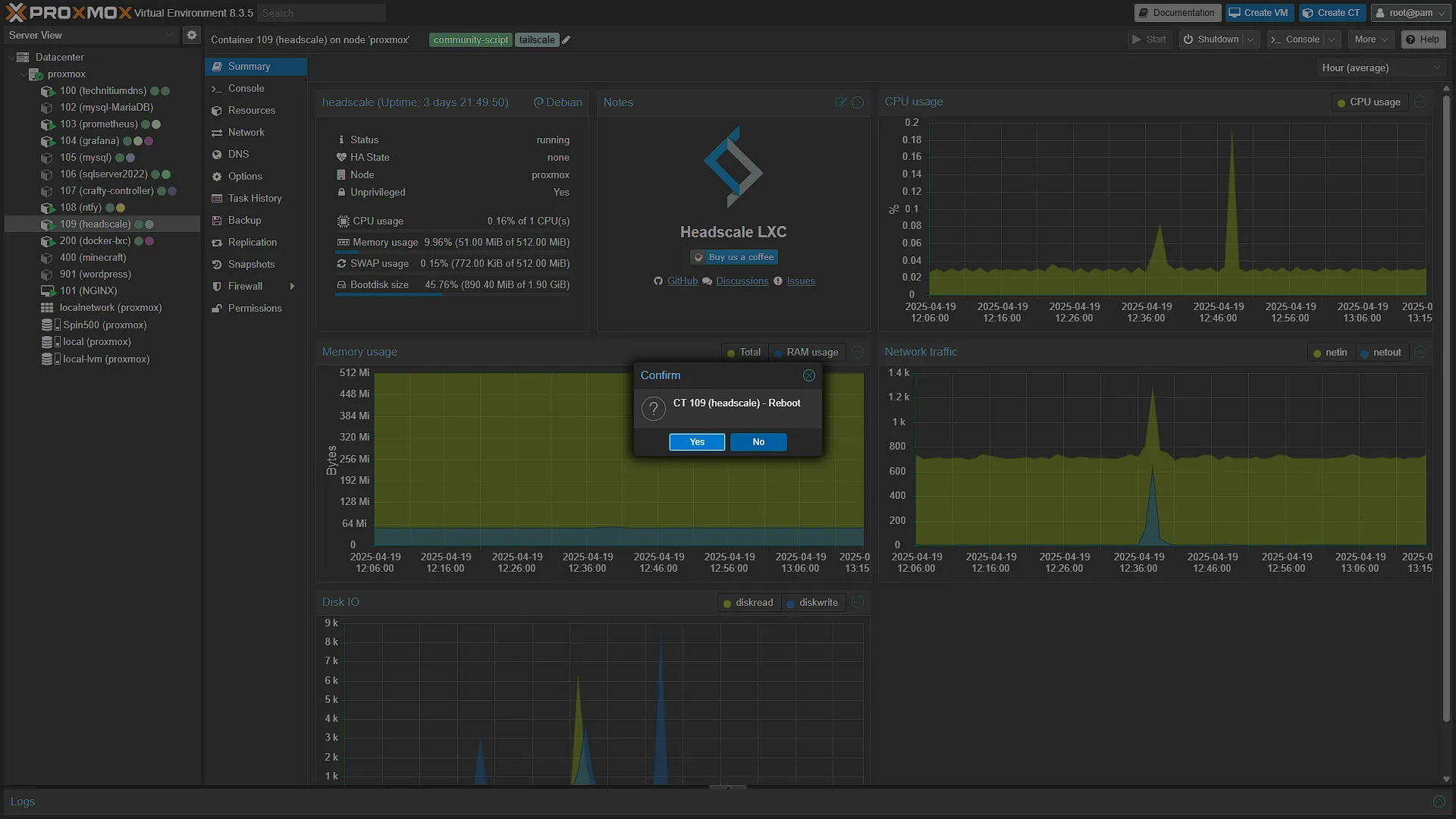

The install will start, first by confirming that we want to install Tailscale. Yes, we want to. The next screen will display a list of LXC containers to which we can install Tailscale. Select the Headscale LXC with SPACE and press enter. The install will complete fairly quickly and ask us to reboot the container and then run tailscale up. Restart the container, but don’t run the command yet, we have a few other steps to do first, and we want to run the command so that we have an exit node which we can select from our connecting device.

---

Step 2: Configure Exit Nodes

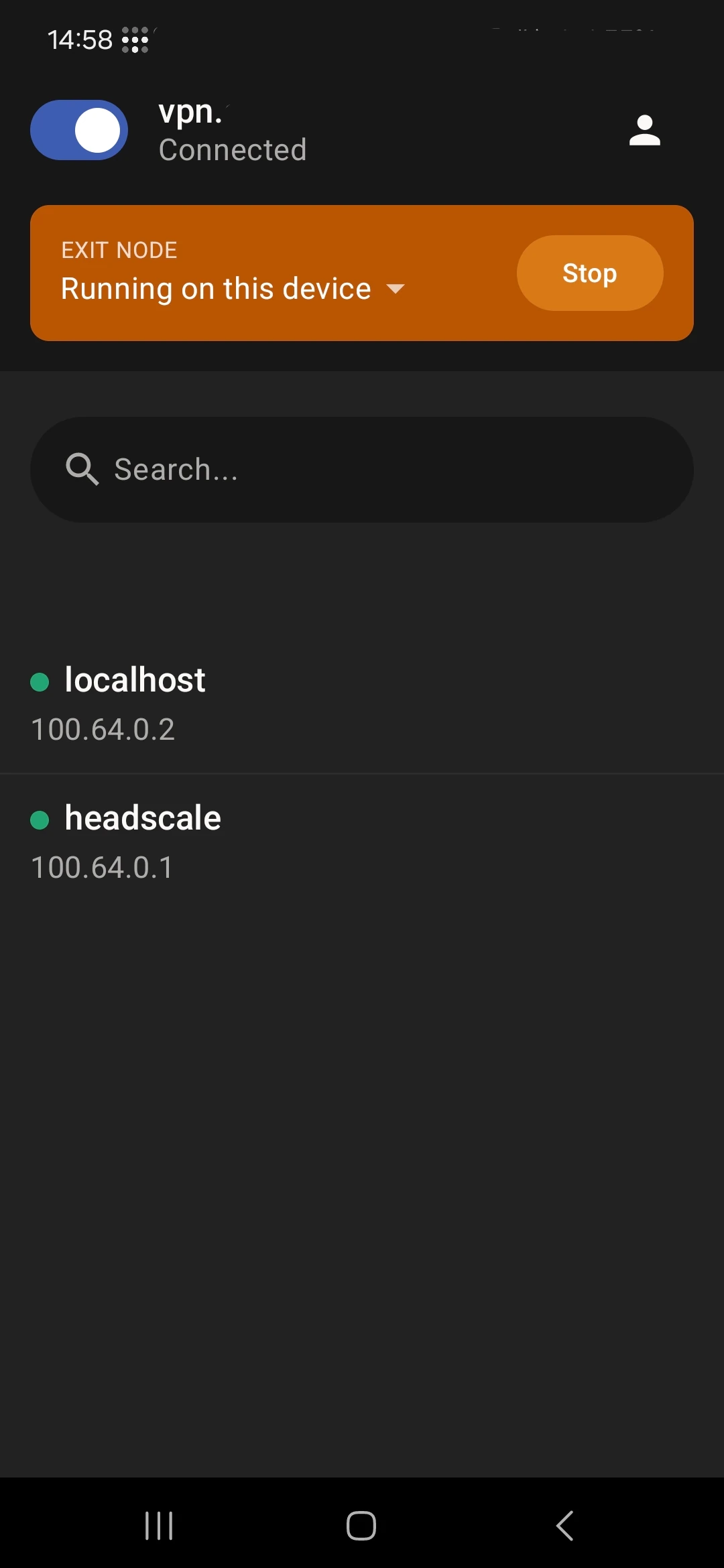

The first thing we need to get done, is to get a route from our connecting device. For this, we might need to enable an exit route on our phone. This is temporary though and only necessary if we don’t have a route to our device yet. Open the app and in the top part, there will a section called EXIT NODE, currently set to none. Tap this and enable the option Run as exit node. A warning will pop up, but seeing as this is temporary, just accept and continue.

Next we need to enable our Headscale node as an exit node as well. Before doing this in Proxmox, we will need to enable port forwarding on our LXC Container. In Proxmox, access our Headscale LXC container’s console and run the following commands:

echo 'net.ipv4.ip_forward = 1' | sudo tee -a /etc/sysctl.d/99-tailscale.conf
echo 'net.ipv6.conf.all.forwarding = 1' | sudo tee -a /etc/sysctl.d/99-tailscale.conf
sudo sysctl -p /etc/sysctl.d/99-tailscale.conf

This will enable port forwarding. Now we need to generate a preauth token, to authenticate our user against our Headscale instance. For this, run the command:

headscale preauthkeys create --user techdecode

Remember to change the user techdecode to the user you selected in the previous articles. A auth token will be displayed. Note that tokens expire fairly quick (a few minutes) so lets get directly to the next command:

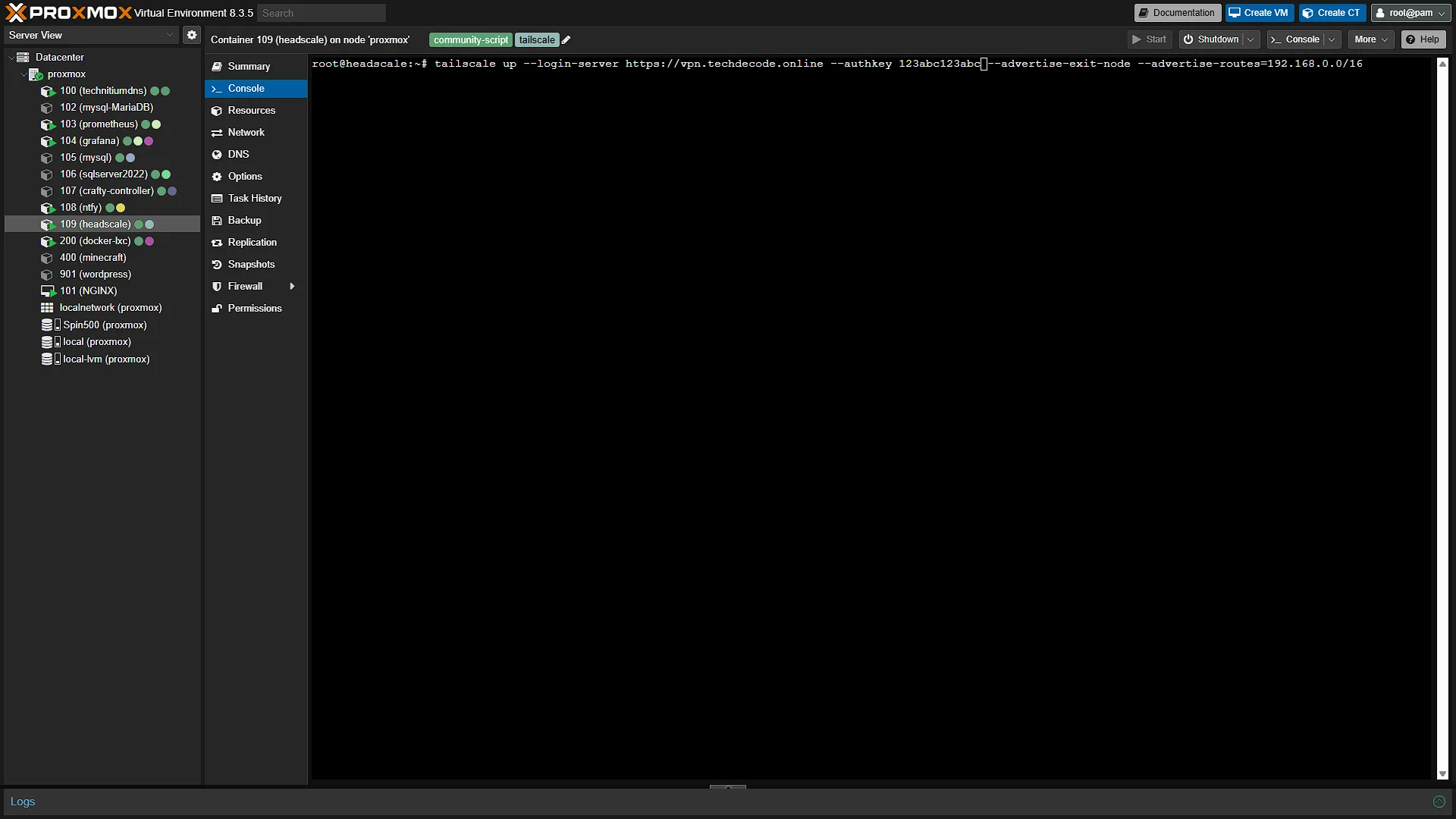

tailscale up --login-server https://vpn.techdecode.online --authkey <GENERATED_TOKEN> --advertise-exit-node --advertise-routes=192.168.0.0/16 --accept-dns=true

Please change https://vpn.techdecode.online to your VPN domain name. Add the generated token to the <GENERATED_TOKEN> part. We are also advertising routes, in our case 192.168.0.0/16. If your Local Area Network is running on 10.0.0.0, please change this to 10.0.0.0/16 to enable that we can access any machine on that IP subnet. in 192.168.0.0, the last two sections (.0.0) can be substituted with any IP address, so we can access 192.168.1.3, also 192.168.50.50 etc.

Now that the Tailscale server is up and running, we can enable the routes. Still in the console, run

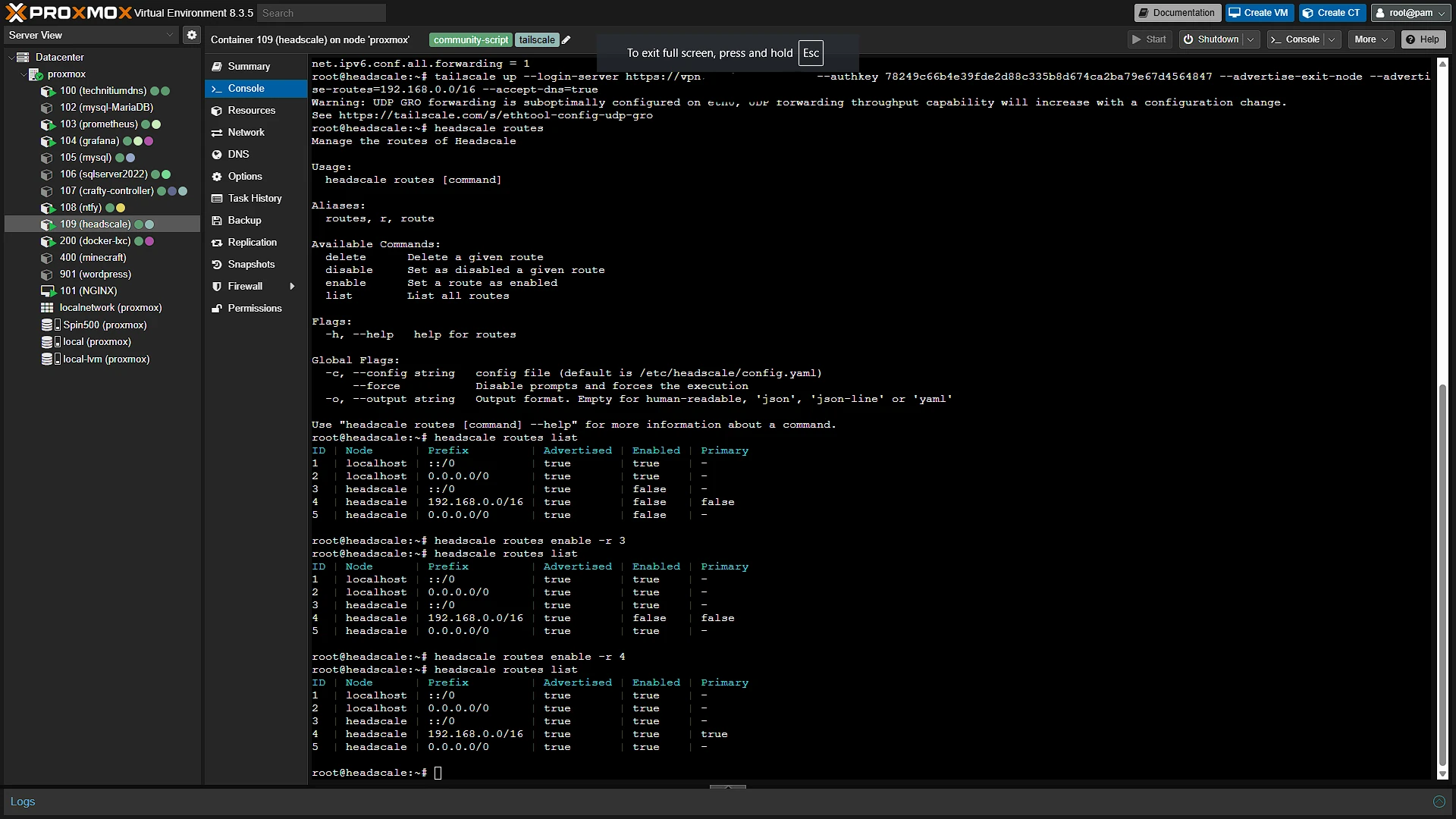

headscale routes list

This will display a list of routes. The first two should be from our Android device (not sure why ours is saying localhost, but anyway…). The next three will be from the Headscale server. We need to enable them all, so take note of the ID in the first column. We need to activate with

headscale routes enable -r <ID>

Replace <ID> with the ID of the routes. It should only be necessary for ID 1 and 3, as they are connected, but check after each command which routes still needs to be activated.

---

Step 3: Select exit node on Android

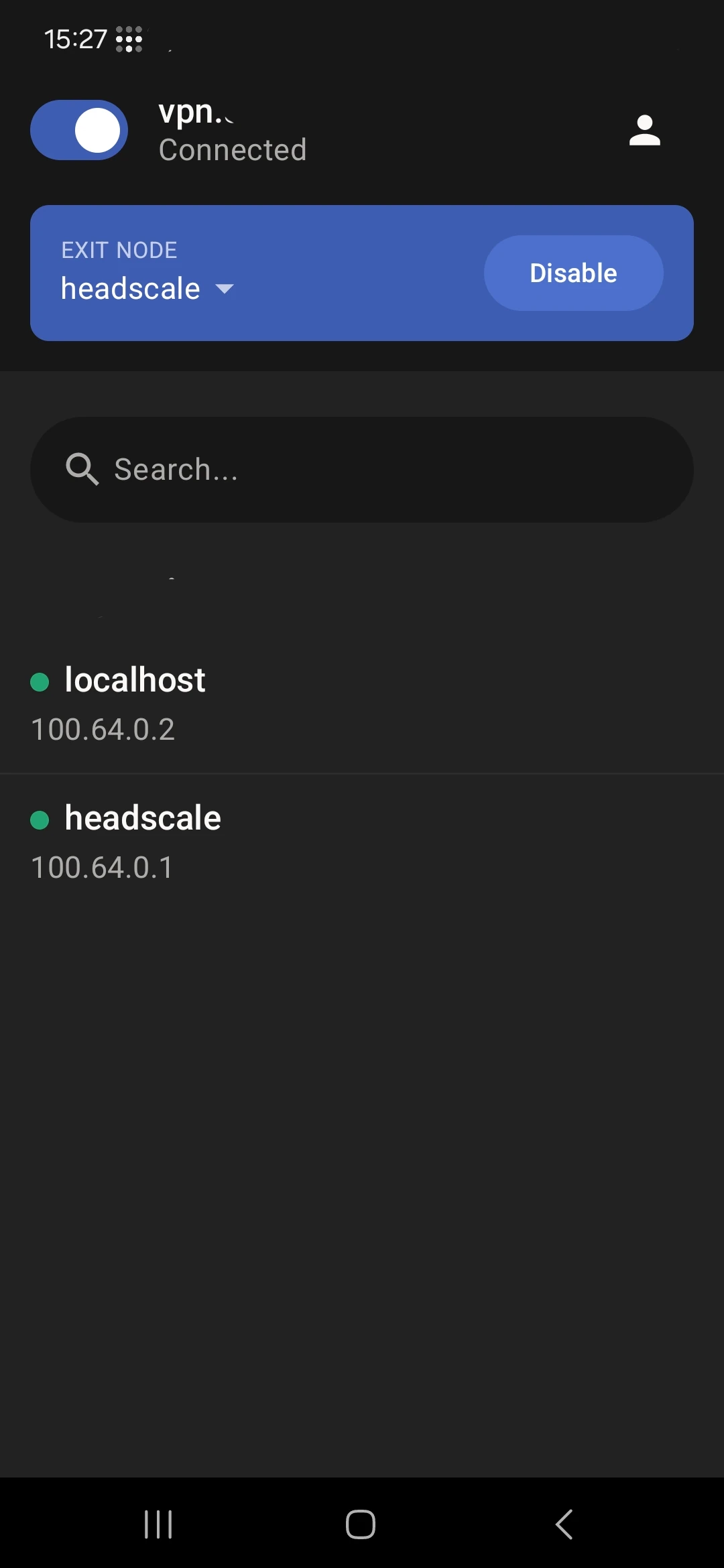

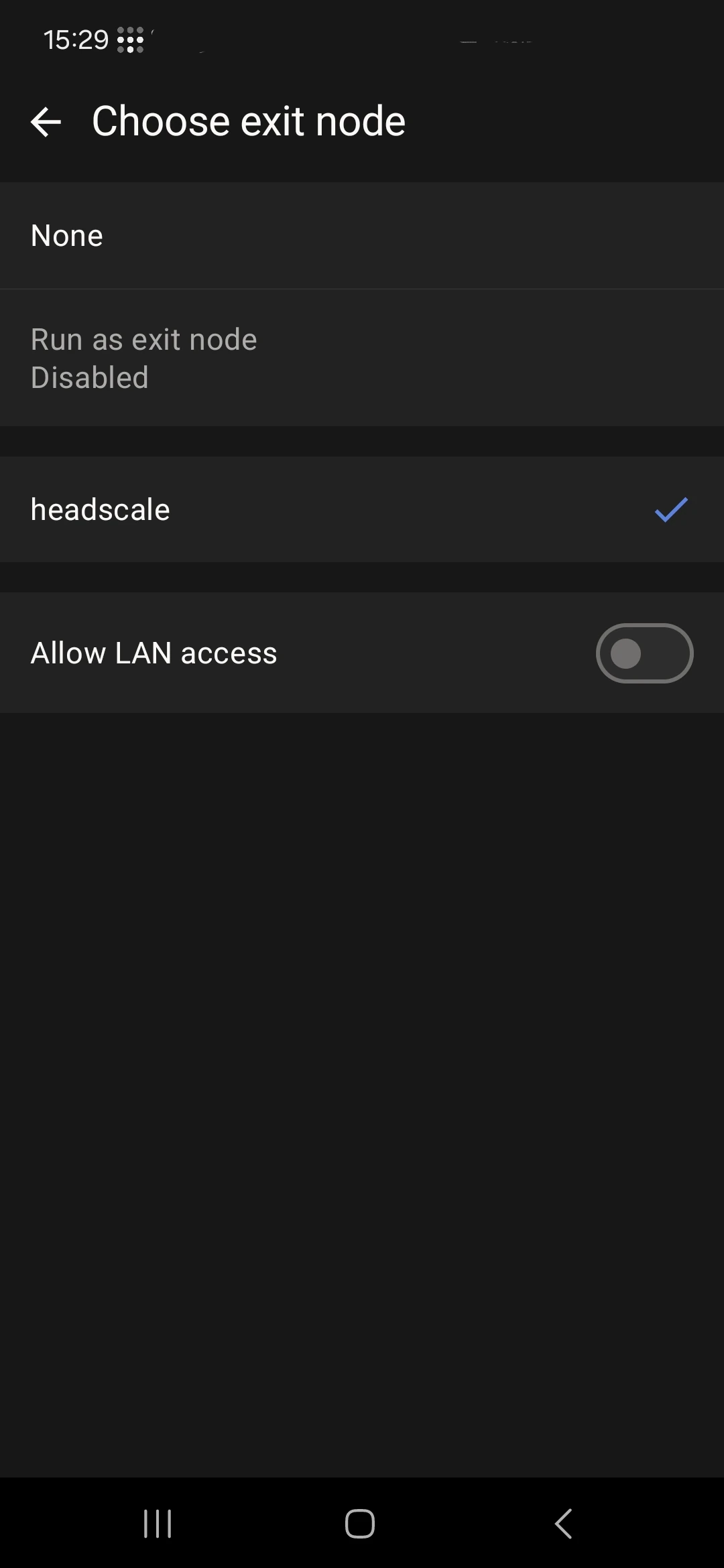

From our android app, we can now change the setting we set earlier that enabled it running as an exit node. However, also select the newly created exit node, in our case headscale. This way, we are now connected from our android device as if we are the Headscale server node. This means that our IP address to the internet will be the same as that of the Headscale server and it would seem to the internet that it is that node that is connecting to the internet. This also enables us to access all of our local LAN services.

---

Conclusion

And that is all there is to it. We can now access our home services from anywhere, without opening them up to the world wide web. We also have a secure tunnel to our home network for in case we want extra security when accessing the internet from untrusted sources. This is a significant accessibility barrier that we jsut overcame and in the process we added an extra layer of security for our mobile devices. Stay tuned for the next instalments in our Build your own homelab series – where we will start to run services that can start saving us money each month.
